Product Description

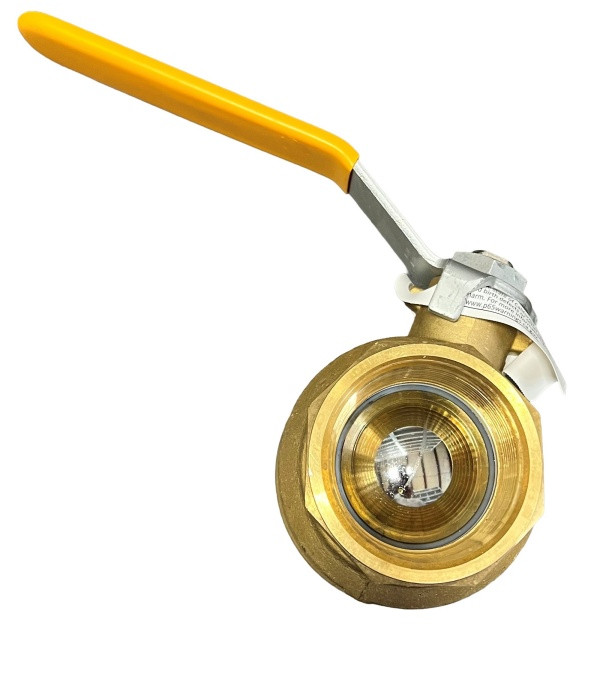

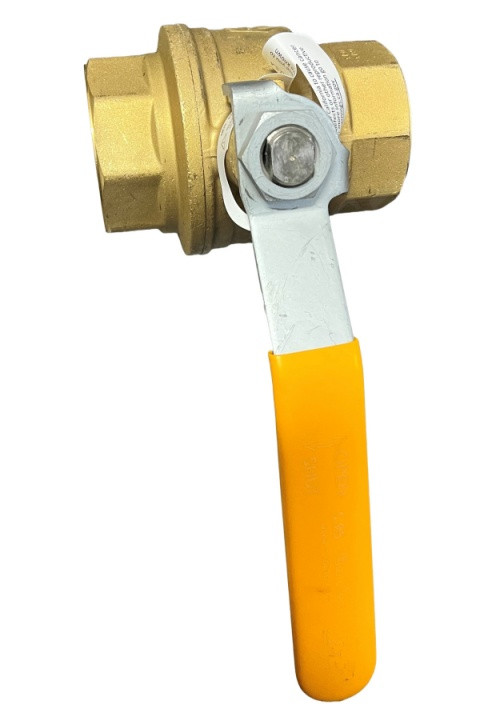

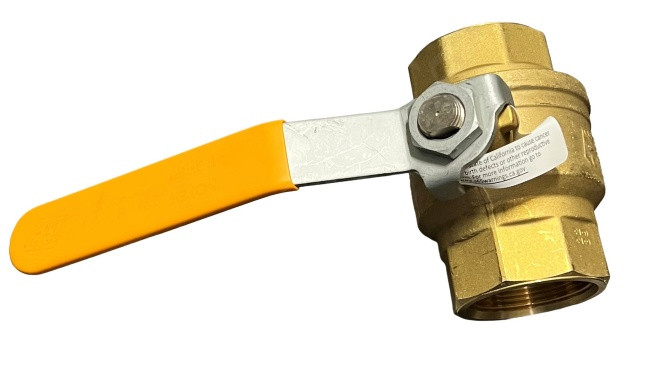

BALL VALVE 2-1/2 FP X FP BRASS - New no packaging
Pipe Size
2 1/2
Flow Coefficient (Cv)
596.2
Maximum Pressure
450 psi @ 100° F
Maximum Steam Pressure
150 psi @ 350° F
Temperature Range
-40° to 350° F
Vacuum Rating
29.9 in. of Hg
Port Type
Full
End-to-End Length
6 1/8"
Valve Function
On/Off
Valve Type
Ball
Activation
Manual
Valve Operation
Handle
Handle Style
Lever
Handle Type
Standard
Fitting Type
Connector
Connection Type
Pipe
Connection Style
Threaded
Gender
Female × Female
Thread Type
NPT
Body Material
Brass
Ball Material
Brass
Seal Material
Fluorocarbon Rubber
Seat Material
PTFE Plastic
Shape
Straight
Overall
Height
7 9/16"
Length
13 1/8"
For Use With
Water, Oil, Air, Argon, Helium, Krypton, Neon, Xenon, Steam
Specifications Met
CSA-US Certified, CSA Certified
UL File Number
MH15505
CSA File Number
112439_0_000
Chemical Resistance
Excellent
Acetone, Air, Argon, Butane, Carbon Dioxide, Diesel Fuel, Gasoline, Helium, Kerosene, Krypton, Neon, Nitrogen, Oil, Oxygen, Propane, Soap Solutions, Sodium Hydroxide (25% Concentration), Sodium Hydroxide (50% Concentration), Steam, Water, Xenon
Moderate
Ethanol, Ethylene Glycol, Isopropyl Alcohol, Methanol, Mineral Spirits, Natural Gas, Salt Water, Toluene, Xylene
Poor
Ammonia, Citric Acid (100% Concentration), Citric Acid (25% Concentration), Citric Acid (50% Concentration), Hydrochloric Acid (100% Concentration), Hydrochloric Acid (25% Concentration), Hydrochloric Acid (37% Concentration), Methanol, Methyl Ethyl Ketone, Nitric Acid (100% Concentration), Nitric Acid (25% Concentration), Nitric Acid (50% Concentration), Phosphoric Acid (25%), Phosphoric Acid (50%), Sodium Hydroxide (100% Concentration), Sodium Hydroxide (75% Concentration), Sodium Hypochlorite (100% Concentration), Sodium Hypochlorite (25% Concentration), Sodium Hypochlorite (50% Concentration), Sulfuric Acid
Warning Message
Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
RoHS
RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH
Not Compliant
DFARS
Specialty Metals COTS-Exempt
Country of Origin
Italy
Schedule B
848180.1085
ECCN
EAR99
