Product Description

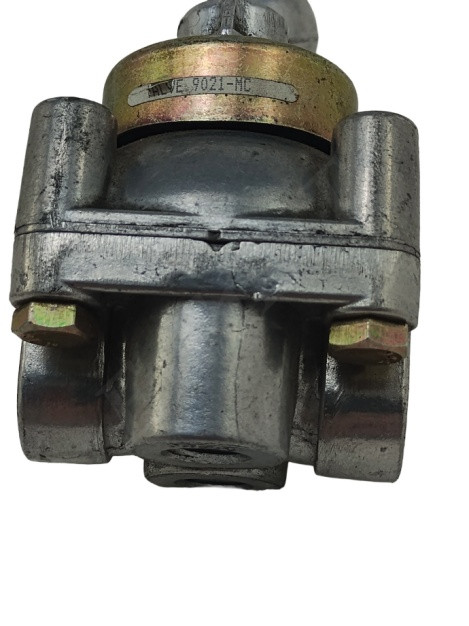

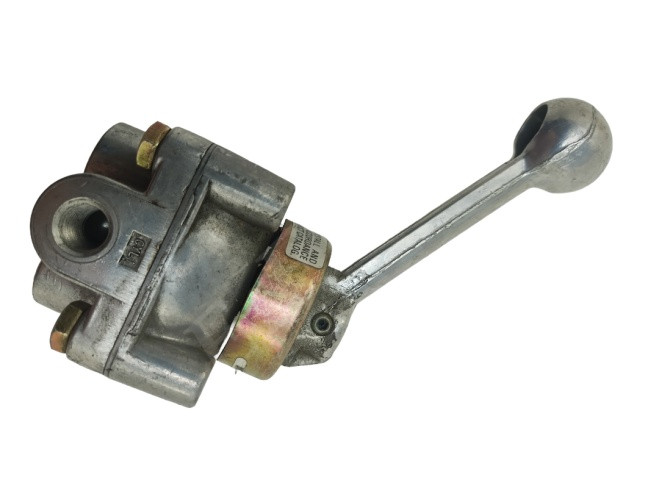

BARKSDALE 9021-MC 4-WAY SPRING RETURN VALVE - New no packaging
Manufacturer Part Number 9021-MC-A
Manufacturer Barksdale Control Products
Product Series 9020
Family Series Barksdale Control Products Valves, 9020 Series
Description Valve,Directional Control, Shear-Seal,Interflow
Air Pressure 350 psi
Hydraulic Pressure (psi) 350 psi
Number of Positions 3
Port Size 1/4 " NPT
Min Flow Passage Diameter 0.375 "
Flow Pattern Closed Center Manipulator (Float Center)
Back Pressure (psi) 250 psi
Proof Pressure 1.5x Working Pressure except at Return Port
Working Media Air (Pneumatic), Hydraulic Oil
Gasket Material Buna N
Pressure Seal Material Brass
Body Material Anodized Aluminum
Rotor Material Hard Anodized Aluminum
Comments 250 psi (17.2 bar) Manipulator Rated Pressure
Net Weight 1.265 lbs
Gross Weight 1.265 lbs
