Product Description

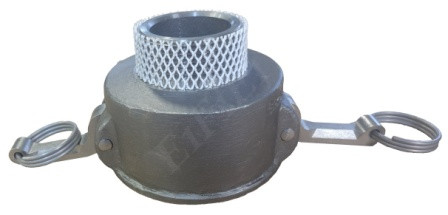

CAMLOCK 3 FEMALE X 2 MNPT 316SS TYPE B - New no packaging
For Use With
Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid
Shape
Straight
Type
Adapter
Cam-and-Groove Component
Socket
Socket Locking Type
Lever
Flow Control
Open
Connection Style
Cam-and-Groove Female × Threaded Male
Coupling Size
3
Socket ID
3 5/8"
Pipe Size
2
Thread Type
NPT
Dash Size
32
Material
316 Stainless Steel
Number of Levers
2
Lever Material
304 Stainless Steel
Pull Ring Material
300 Series Stainless Steel
Gasket Material
Buna-N Rubber
Maximum Pressure
200 psi @ 72° F
Temperature Range
-65° to 250° F
Length
3 19/64"
Compatible With
Andrews Cam-and-Groove, Dixon Cam-and-Groove, Ever-Tite Cam-and-Groove, PT Coupling Cam-and-Groove
Specifications Met
Fed. Spec. A-A-59326
RoHS
RoHS 3 (2015/863/EU) Compliant
REACH
Not Compliant
DFARS
Specialty Metals COTS-Exempt
Country of Origin
United States
USMCA Qualifying
Yes
Schedule B
732690.8695
ECCN
2B999
