Product Description

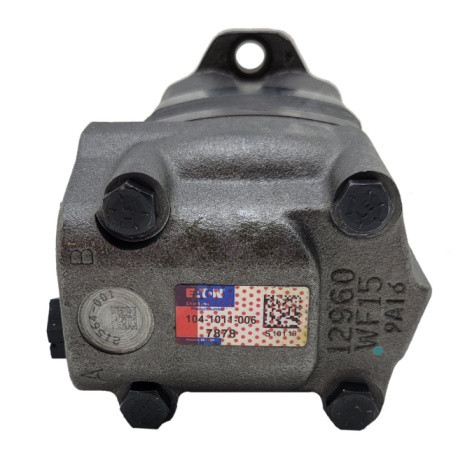

CHAR-LYNN 104-1011-006 HYDRAULIC MOTOR - New open box
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| Model Code |
M02096AC03AA0100010000000AAAAF
|
|
| Motor Series |
2000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
160
|
|
| Geometric displacement [cm3/r [in3/r]] |
158.1 [9.65]
|
|
| Motor type |
Standard
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
2 Bolt - A
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
|
|
| Shaft type |
TAPERED
|
|
| Shaft dimension |
Dia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
|
|
| Shaft Key |
Square key, 5/16 x 1 inch
|
|
| Main port thread type |
UN / UNF
|
|
| Main port style |
Sideport - staggered
|
|
| Main port dimension |
7/8 - 14 UNF-2B SAE O-Ring port
|
|
| Drain Port Dimension |
7/16 - 20 UNF-2B SAE O-Ring port
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
No
|
|
| Paint information |
n/a
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR - Standard
|
|
| Seal Kit |
61258-000
|
|
| Front bearing type |
Tapered roller bearing
|
|
| Rear bearing type |
Tapered roller bearing
|
|
| Orbital gearwheel set |
Standard
|
|
| Check valve function |
Yes
|
|
| Hydraulic valve function |
None
|
|
| Sensor |
None
|
|
| Packaging |
Single pack
|
|
| Name Tag |
Danfoss name tag
|
|
| Design code |
06
|
|
| Brand |
Danfoss
|
|
| Sub brand |
Char-Lynn
|
