Product Description

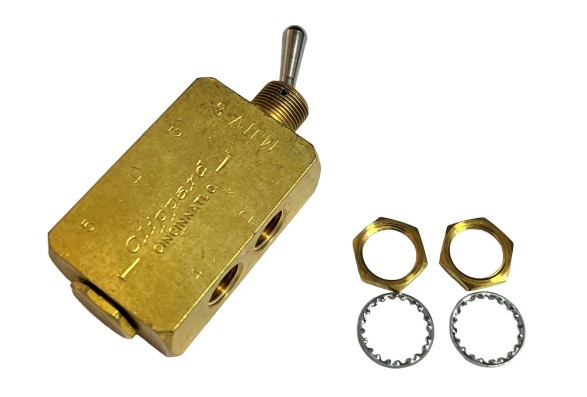

CLIPPARD MJTV-5 AIR VALVE 4 WAY 2 POS 1/8 PORT TOGGLE LEVER - New original packaging
Flow 180 l/min @ 50 psig; 295 l/min @ 100 psig
Force to Rotate Toggle 16 oz. Nominal
Function 4-Way Fully-Ported
Included Item(s) Nut & Lockwashers
Input PSI 300 psig max.
Material, Body Brass
Material, Seals Nitrile Std. FKM or Krytox optional
Material, Spring Stainless Steel Stem & Spring
Material, Toggle Nickel-Plated Steel
Max PSI 150 psig
Medium Air, Water or Oil
Mount #15/32-32 Thread
Operating Temperature Range 32 to 230 F
Port, Inlet / Port, Outlet 1/8" NPT / 1/8" NPT
