Product Description

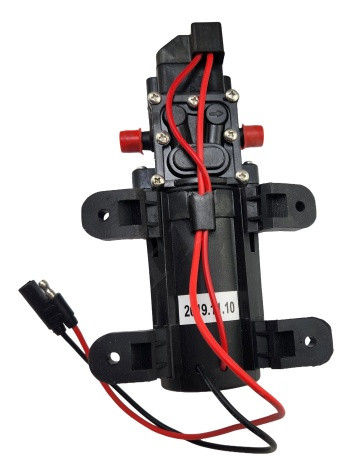

DELAVAN AG PUMPS 2200-201-SB PUMP,DIAPHRAGM POLYPROPYLENE 12VDC 1 GPM - New open packaging
BrandDELAVAN AG PUMPS
Current3.5 A
Number of Diaphragms2
Diaphragm MaterialSantoprene
Discharge Connection Size3/8 in
Discharge Connection TypeBarbed
Maximum Flow Rate1 gpm
Flow Rate @ 0 psi1.16 gpm
Flow Rate @ 20 psi0.78 gpm
Flow Rate @ 40 psi0.6 gpm
Housing MaterialPolypropylene
Intake Connection Size3/8 in
Intake Connection TypeHose
Manufacturer Part Number2200-201-SB
Max. Media Temperature140 °F
Nameplate Voltage12V DC
Overall Height2.6 in
Overall Length6.9 in
Overall Width3.9 in
Demand Pressure SwitchYes
Series2200
StandardsCE; NSF
Suction Port3/8 in Hose
Discharge Port3/8 in Barbed
Max. Discharge Pressure40 psi
PrimingSelf-Priming
Power SourceElectric
Check Valve MaterialViton
