Product Description

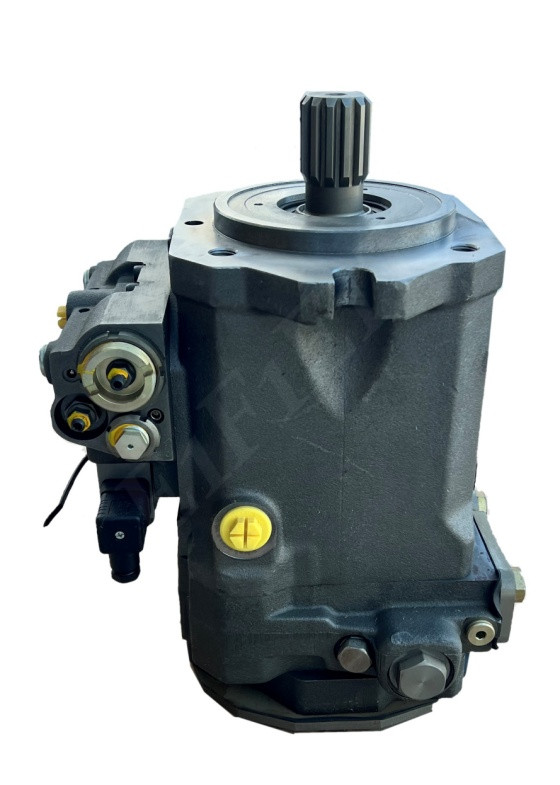

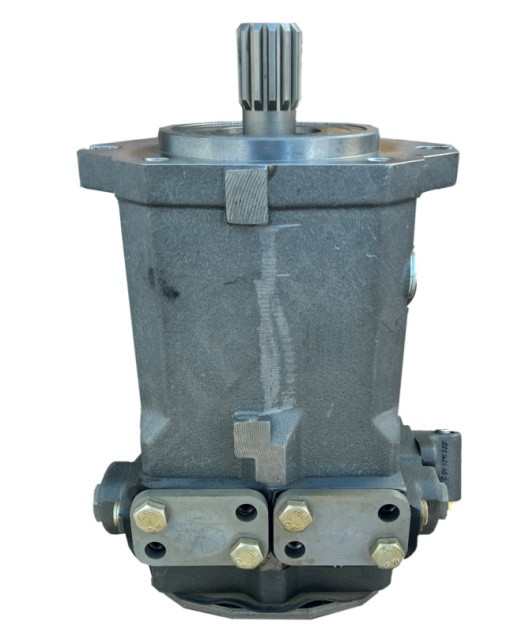

EATON 560AW00709A HYDRAULIC PUMP 135cc/r 471-3223, 20R-3391 CATERPILLAR - New no packaging
Eaton 560AW00709A HPV135R1S3ME2DJJ030AJ0000125125AN0KA
Displacement: 135 CC/R
Rotation: CW
Mounting flange: SAE J744 standard / additional threads (sizes 105; 135: (*u))
Input Driveshaft: splined ANSI B92.1 8/16- 13 teeth (SAE J744 D&E)
Porting: ISO 6149 metric
Pump Control: E1P: electro-proportional /pressure cut-off (*y)
Control Pressure: 4-16 bar (not for E5)
Control Solenoids: DIN / 24 V
System Relief Valves: 380 bar
Auxiliary Pad and Shaft: SAE J744 C / ANSI B92.1 12/24 - 14 teeth (C)
