Product Description

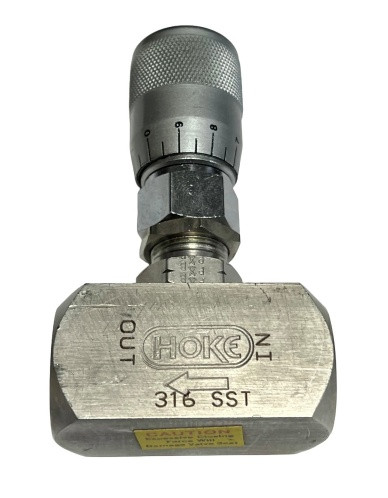

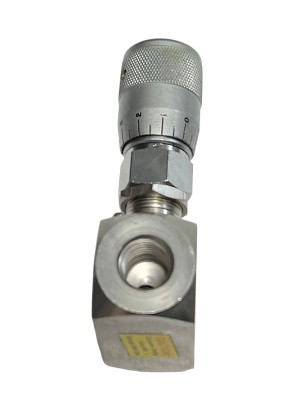

HOKE 2335F4Y METERING VALVE 1/4 FNPT 3000 PSI 2300 SERIES 316SS - New no packaging
End Connections
1/4" NPT Female
Flow Pattern
Globe
Body Material
316 Stainless Steel
Max Operating Pressure
3000 psig at 100° F (207 bar at 38° C)
1000 psig at 250° F (68.9 bar at 121° C)
Operating Temperature Range
-60 to +250 ºF
-51 to +121 ºC
Cv
0.30 in
Stem
8° STEM Spring Loaded
Orifice
0.125 in
3.17 mm
Panel Hole
0.64 in
16 mm
Panel Thickness
0.13 in
3 mm
Features & Benefits
20 turn stem displacement for fine metering
Optional micrometer vernier handle provides visual control and repeatable stem settings.
2 orifice sizes 0.062” (1.59mm) and 0.125” (3.17mm) are available with standard 8° stem
Spring loaded stem in all 316 stainless steel valves prevents galling and enlargement of the orifice.
For ultra fine metering, a 1° spring loaded stem design is available for all valves with 0.062” (1.59mm) orifice. See flow curves for details.
Panel mounting is standard on all valves
Bonnet lock prevents accidental disengagement of bonnet.
