Product Description

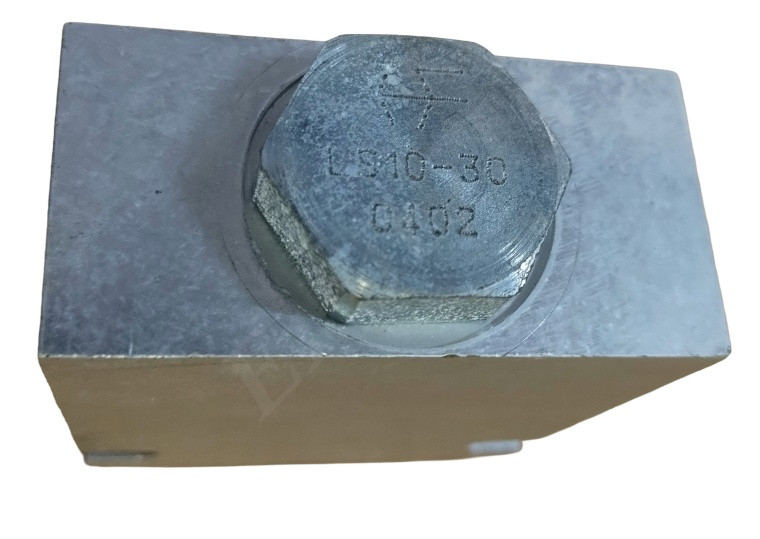

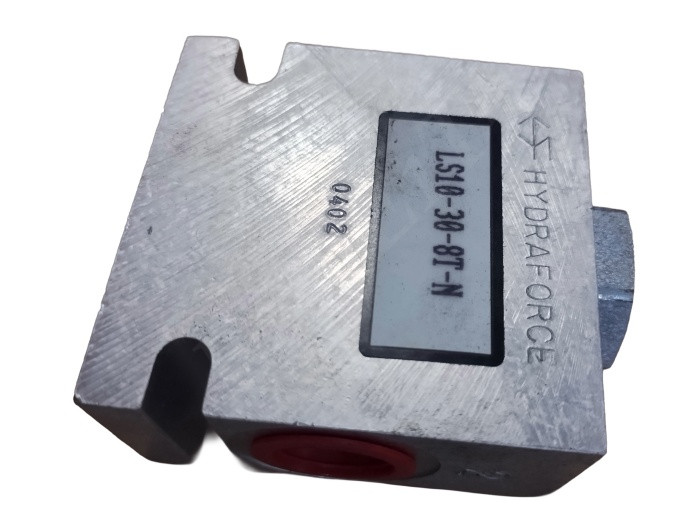

HYDRAFORCE LS10-30-8T-N SHUTTLE VALVE SAE-8 PORT 3000PSI - New open packaging
DESCRIPTION
A load-shuttling, screw-in, cartridge-style hydraulic check valve, for use in blocking circuits where a priority of fl ow/direction is given to a higher pressure circuit over a lower one.
OPERATION
The LS10-30 will allow fl ow from the higher pressure ➀ or ➂ port to the ➁ port. The valve is commonly used to direct oil from the pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.
FEATURES
Rapid response to load direction changes. • Industry common cavity.
RATINGS
Operating Pressure: 240 bar (3500 psi) Proof Pressure: 390 bar (5700 psi) Flow: See Performance Chart Internal Leakage: 0.25 cc/minute (5 drops/minute) max. at 207 bar(3000 psi) Temperature: -40 to 120°C with standard Buna seals Filtration: See page 9.010.1 Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1 Installation: No restrictions; See page 9.020.1 Cavity: VC10-3; See page 9.110.1 Cavity Tool: CT10-3XX; See page 8.600.1 Seal Kit: SK10-3X-MM; See page 8.650.1
