Product Description

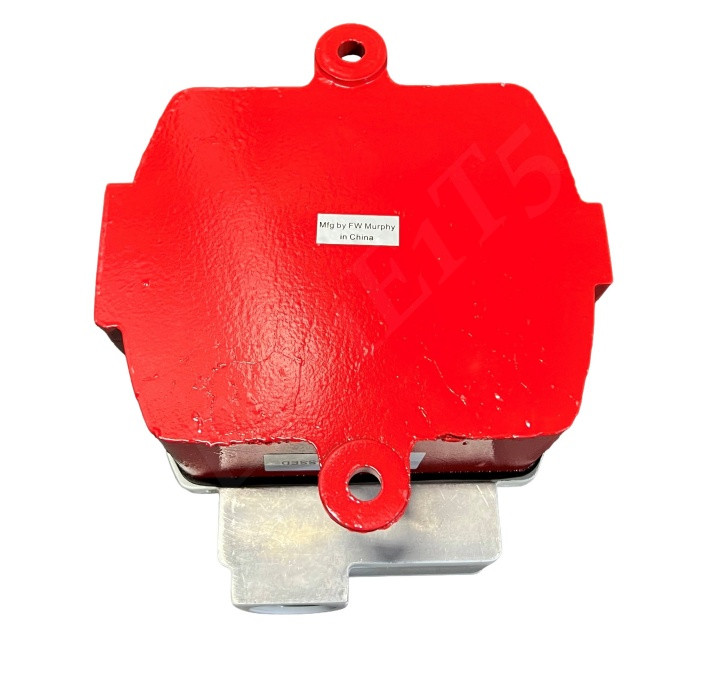

MURPHY EL150K1 FLUID LEVEL GAUGE W/SWITCH - New original packaging
Maximum Temperature: 250° F (121° C)
Maximum Operating Pressure: 25 PSI (172 kPa)
Case: Die cast aluminum, polyurethane coated; approximate dimensions; 5 x 4-3/4 x 2-3/4 in. (127 x 121 x 70 mm)
Enclosure Rating: IP35
Mounting Holes: (2) 9/32 in. (7 mm) diameter at 4-1/2 in. (114 mm) on center
Float: Brass
Lens: Polycarbonate
O-rings: Saturated Nitrile, suitable for coolant or hydrocarbons
Gasket: Nitrile
Vent Tube: 1/4 x 5 in. (6 x 127 mm) copper cane with 1/4 NPT x 1/4 in. (6 mm) tube fitting
Snap-Switch: SPDT rated 10 A @ 125 VAC; 0.5 A @ 125 VDC; 10 A 30 VDC
Wire: (3) 18 AWG x 14 in. (1 mm 2 x 356 mm)
Shipping Weight: 42 oz. (1.2 kg.).
Shipping Dimensions: 5-1/4 x 5-1/4 x 5-1/2 in. (133 x 133 x 140 mm)
