Product Description

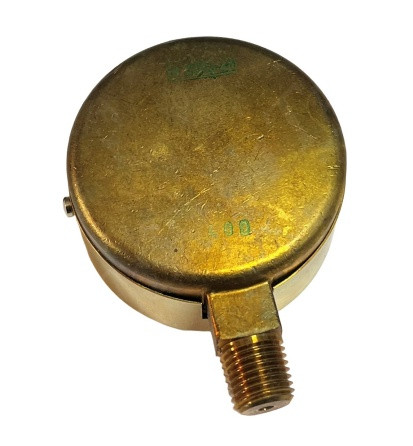

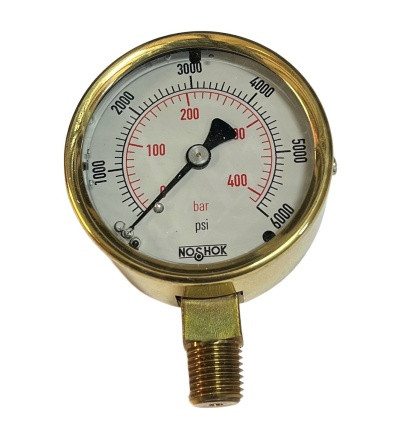

NOSHOK 25-300-6000 PRESSURE GAUGE 0-25-300-6000 PSI/BAR BM - New original packaging
Type
Pressure Gauge
Cover Ring Material
Polished Brass
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)
1.6 %
Connection Size
1/4 in. NPT die-cast brass with the case. 7/16 in. - 20 SAE adjustable type straight thread with FKM O-Ring is also available as a stock option on many ranges (-4 SAE).
Lens/Display Material
Acrylic with O-Ring Seal
Gauge Size
2-1/2 in
Connection Location
Bottom
Dial
Aluminum, white background with black scale. UV resistant.
Case Type
Brass, Bottom Connection
Pressure Range
0 to 6,000 psi
Scale Option
psi/bar Dual Scale
Case Material
Die Cast Brass (Natural Brass Finish) with Safety Relief Plug
Measuring Element
Copper Alloy Coiled Safety Tube
Series
300
Pointer
Balanced Aluminum, Black Finish
Movement
Brass and Nickel-Silver with Highly Polished Bearing Surfaces
Fill Liquid
Glycerin
