Product Description

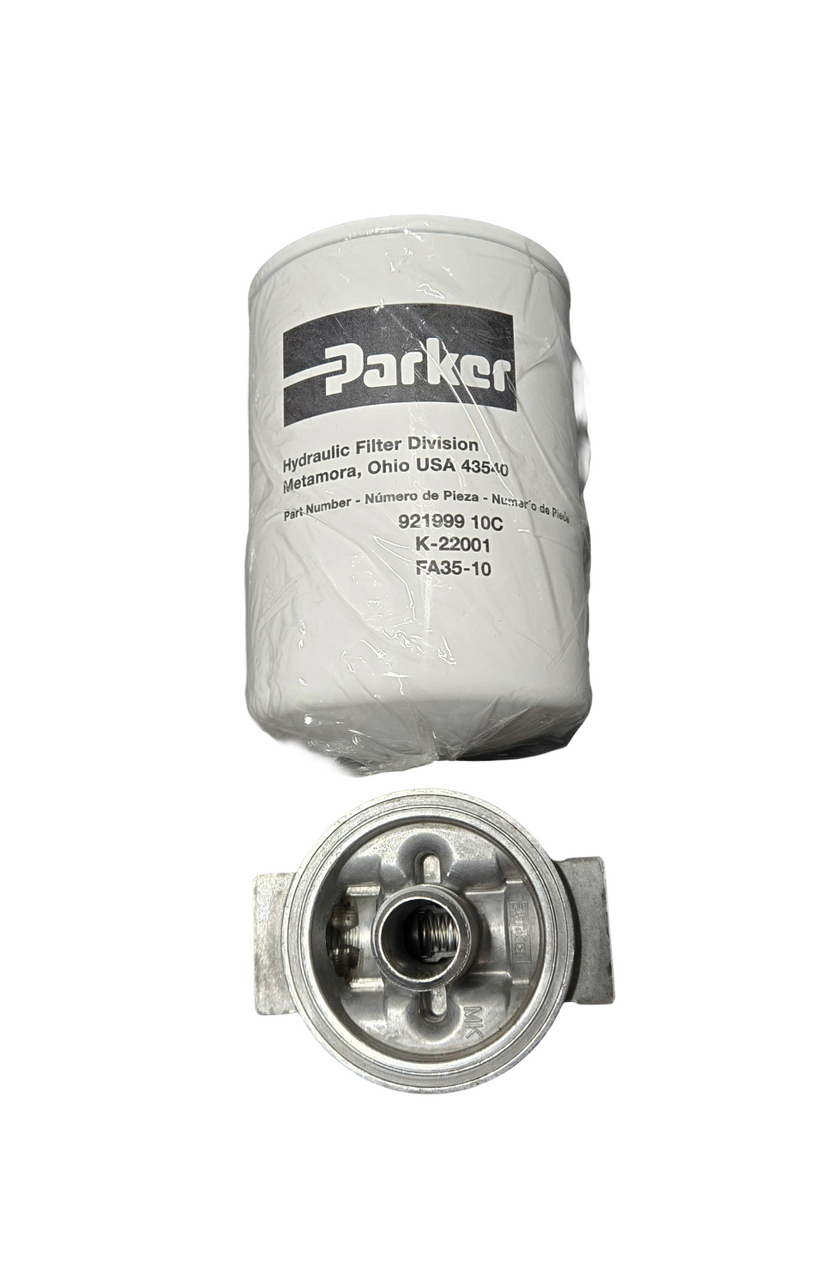

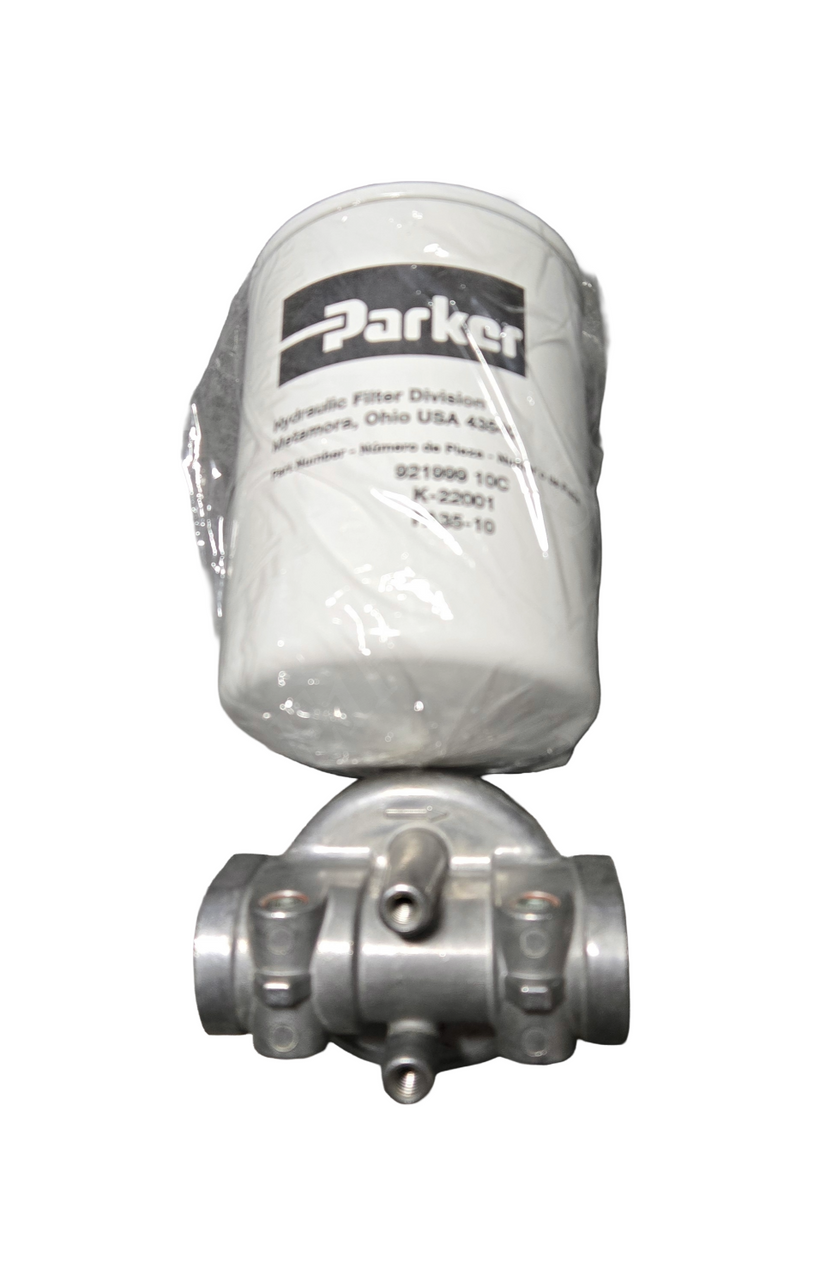

PARKER 12AT110CBPCN12H HYDRAULIC FILTER SPIN-ON 10 MICRONS 3/4 FEMALE NPT - New original packaging
Port Connection Type: 3/4" NPT ports
Indicator Type: Sold separately
Filter Element: 10 micron cellulose
Options: Inlet & Outlet, both sides (all ports drilled & tapped)
Mounting Type: Inline
Bypass Valve (psi): 15
Pressure Rating: 150, 10.3
Flow Rate: 36, 9.5
Filter Element Type: 10 micron cellulose, Canister
Seal Material: Nitrile
Bypass Valve Pressure Rating: 15, 1
Port Type: 3/4" NPT ports
Indicator Type: Sold separately
Indicator Pressure Setting: 12, 0.8
Options: Inlet & Outlet, both sides (all ports drilled & tapped)
Housing Material: Low Carbon Steel
For Fluid Type: Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Maximum Operating Temperature: 225, 107
Weight: 1.6, 0.73
Compatible Element: 921999
Flow Rate (gpm): 9.5
Seal Material: Nitrile
