Product Description

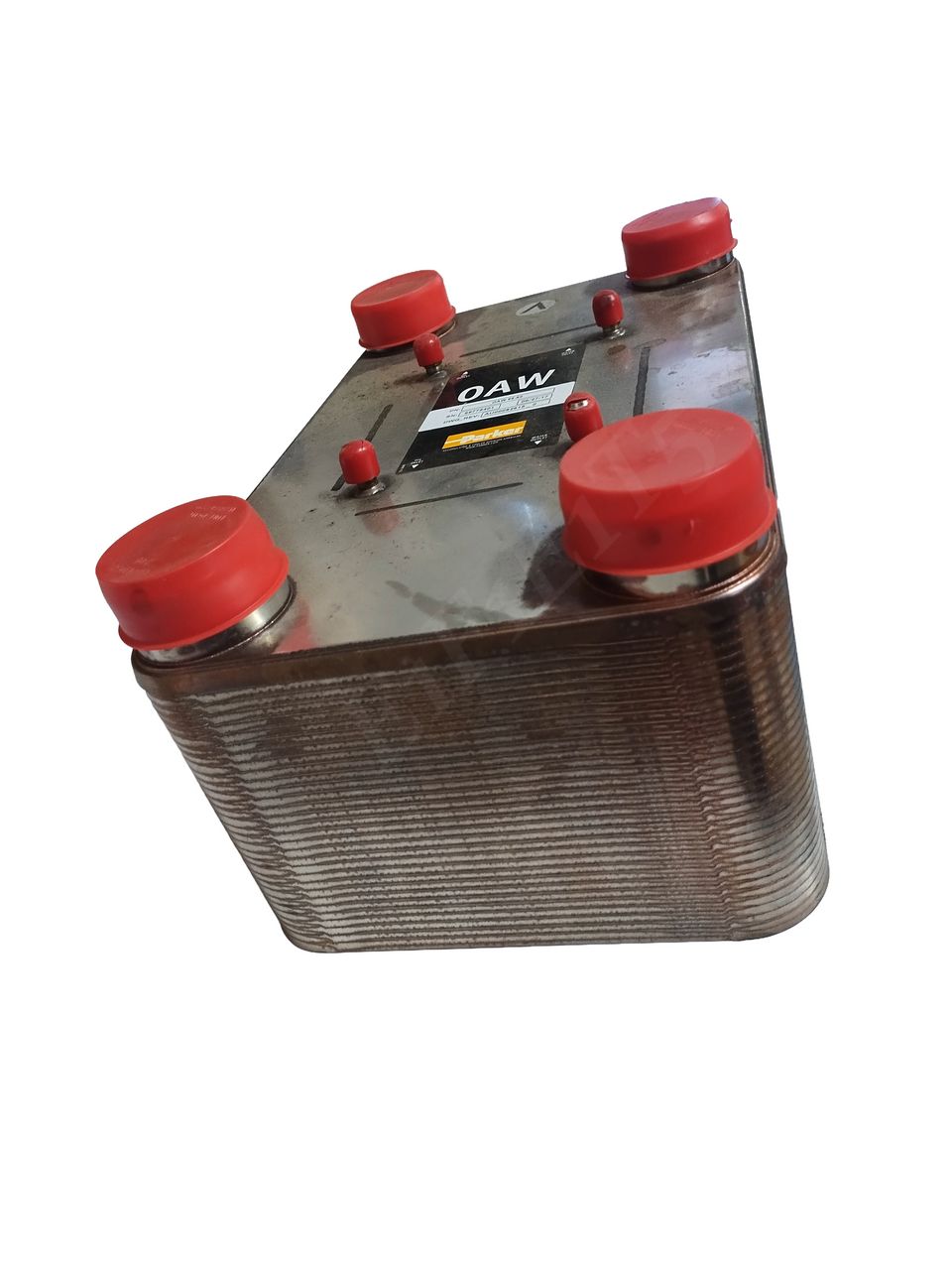

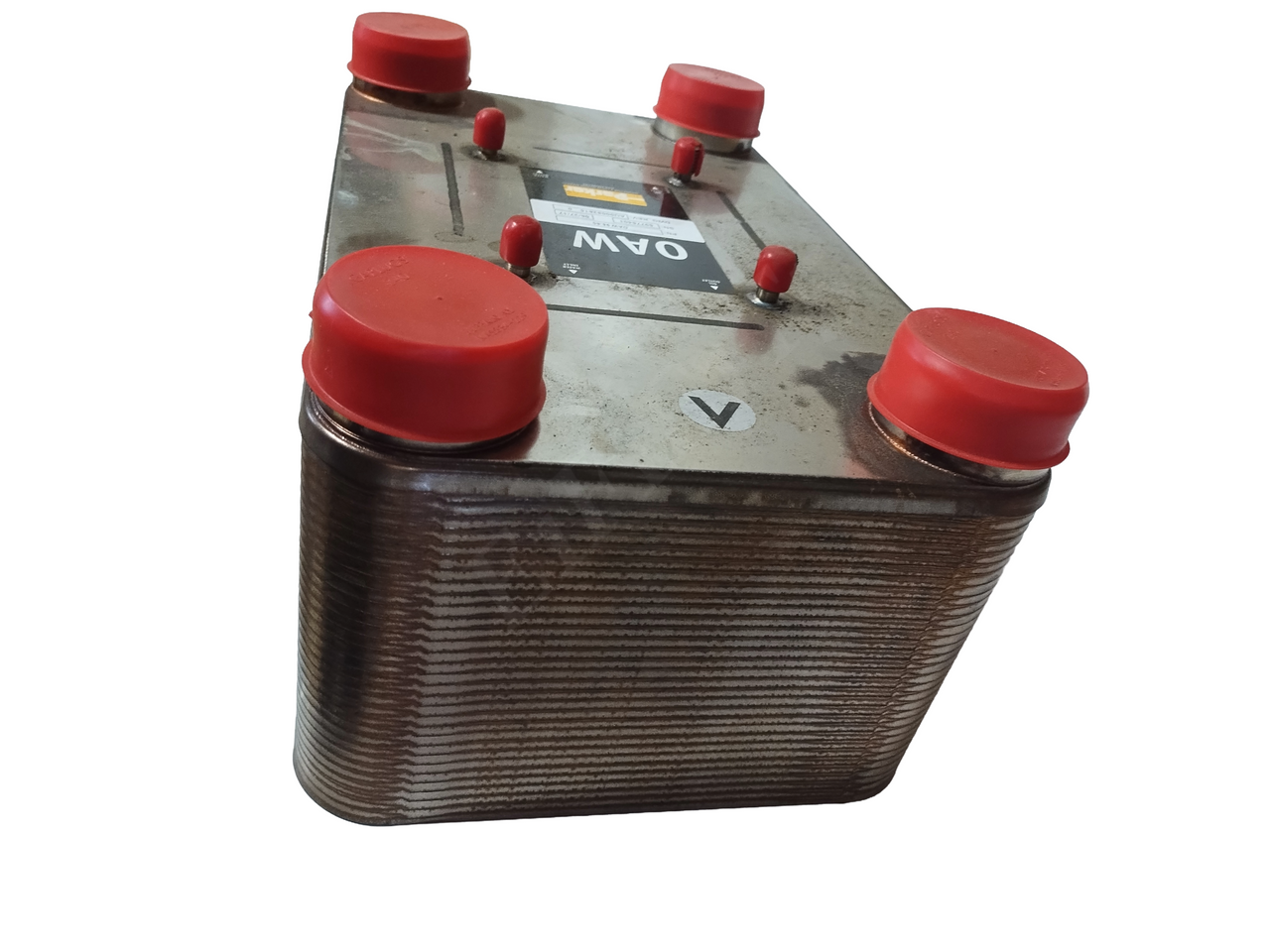

PARKER OAW 95-60 WATER TO OIL COOLER BRAZED PLATE OAW - New no packaging
Maximum Cooling Capacity: 171 HP, 127.6 kW
Maximum Flow Rate: 120 gal/min, 456 L/min
Operating Temperature: -320 to 435 °F, -196 to 224 °C
Maximum Operating Pressure: 450 psi, 31.0 bar
Port Size: 1-1/2 inch (#24 SAE)
Connection Thread Size: 1-7/8"-12 inch
Weight: 59 lb, 26.8 kg
Length: 15.5 inch, 394 mm
Width: 9.6 inch, 244 mm
Height: 7.1 inch, 181 mm
For Fluid Type: Oil Side: Mineral Oil, Oil/Water Emulsion, Water Glycol, Phosphate Ester, Water Side: Demineralized, Untreated Water. For sea water or chemically treated water, consult factory
Materials of Construction: Stainless Steel AISI 316 (Plates)
Size: OAW-95-6
