Product Description

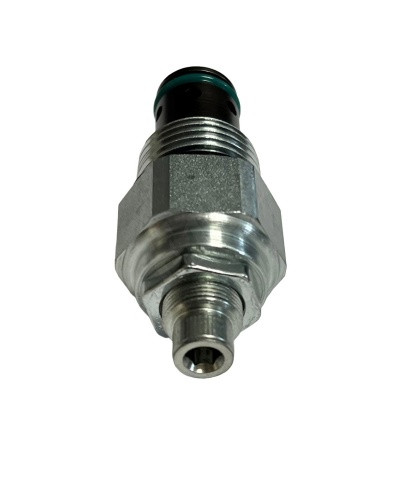

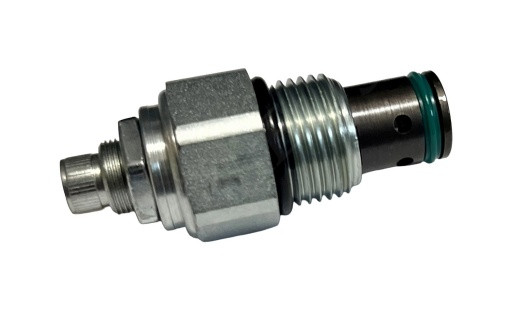

PARKER RAH101S20 VALVE,RELIEF - New no packaging
Division: Hydraulic Valve Systems Division
Flow Rate: 30 gal/min, 113 L/min
Flow Rate: 30 GAL/MIN, 113 L/MIN
Maximum Inlet Pressure Rating: 5000 PSI, 350 BAR
Pressure Control Range: 100-2000 PSI, 6.9-138 BAR
Maximum Inlet Pressure Rating: 5000 psi, 350 bar
Adjustment Mechanism: Screw
Seal Material: D-Ring (Standard)
Pressure Control Range: 100-2000 psi, 6.9-138 bar
Adjustment Mechanism: Screw
Seal Material: D-Ring (Standard)
Maximum Flow Rate: 30 gal/min, 113 L/min
Maximum Operating Pressure: 5000 psi, 350 bar
Maximum Tank Pressure: 5000 psi, 350 bar
Standard Setting Pressure: 1000 psi, 69 bar
Maximum Pressure Setting: 2000 psi, 138 bar
Pressure Control Sensitivity: 570 per turn psi, 39.3 per turn bar
Reseat Pressure: 90% of pressure setting
Actuation Type: Pressure Sensing
Configuration: Pressure Relief
Leak Rate: 5 per @ 100 psi (6.8 bar) setting cm3/min
Mounting Type: Screw in cartridge valve
Cavity Size: C10-2
Function: Pilot Operated
Operation Type: Automatic
For Fluid Type: Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity: 45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating: ISO 4406 18/16/13, SAE Class 4
Valve Material: All parts steel. All operating parts hardened steel
Installation Torque: 51-55 lb-ft, 69-75 Nm
Operating Temperature: -35 to +200 °F, -37 to +93 °C
Maximum Operating Temperature: +200 °F, +93 °C
Minimum Operating Temperature: -35 °F, -37 °C
Weight: 0.5 lb, 0.23 kg
