Product Description

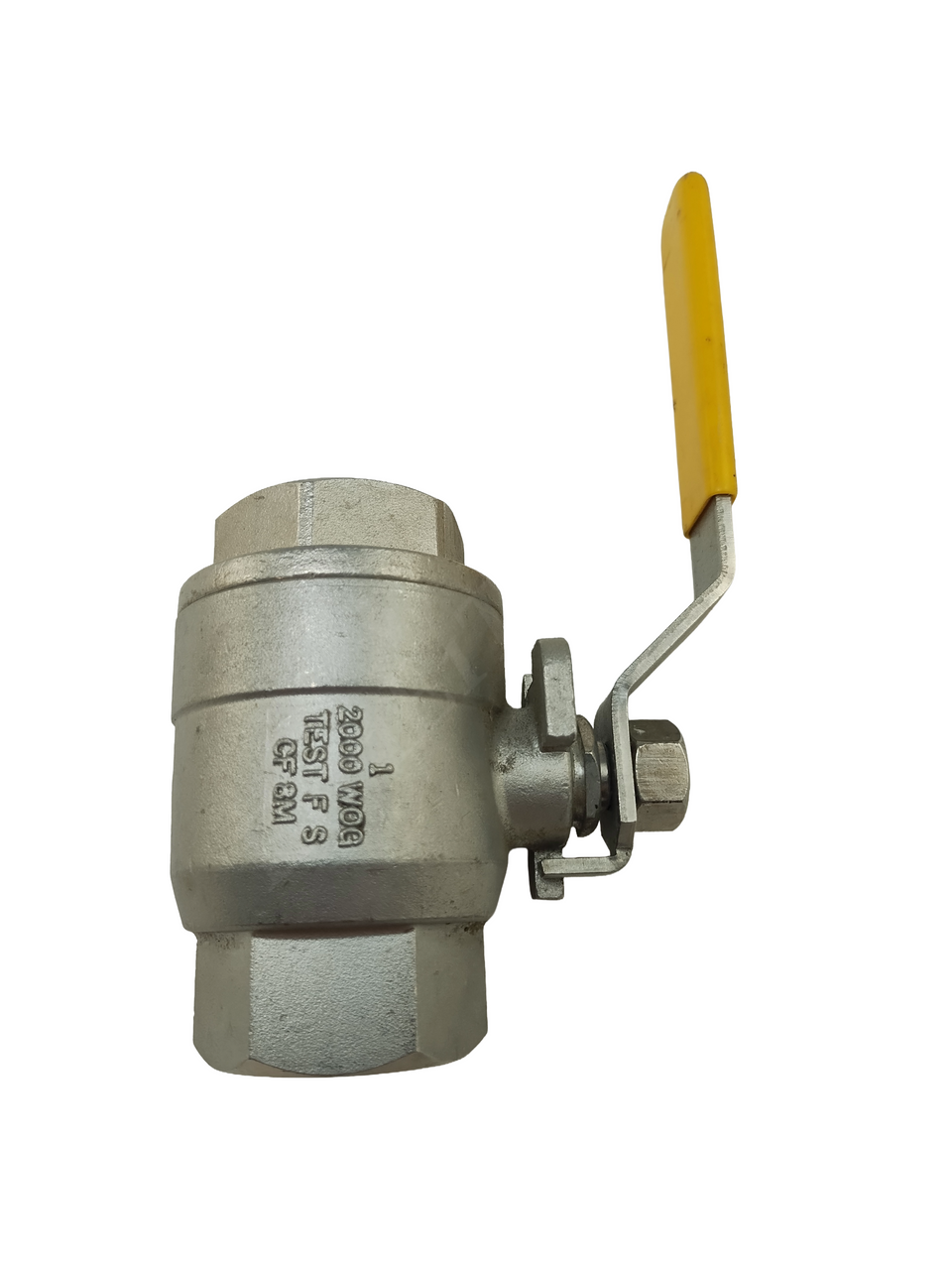

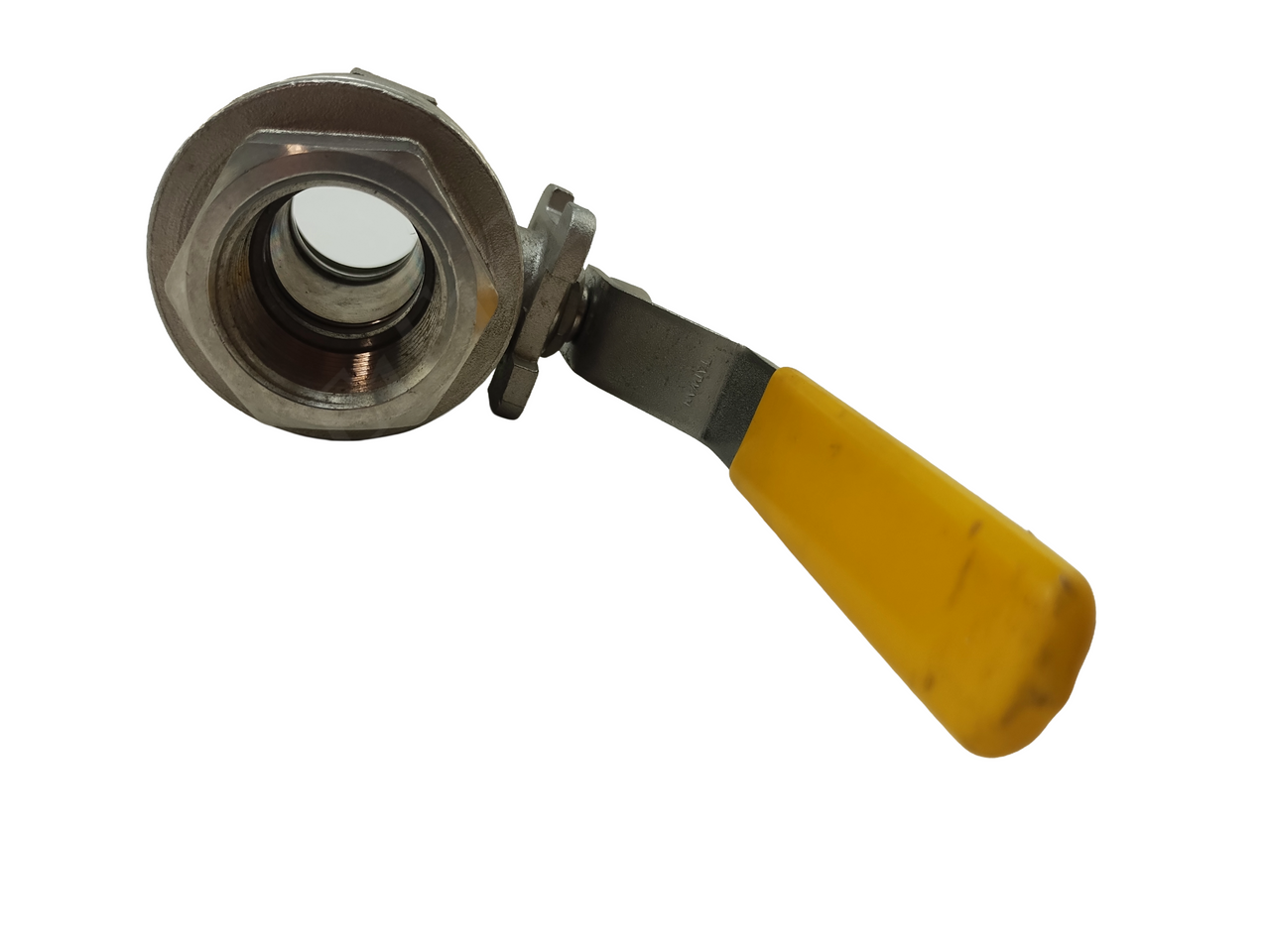

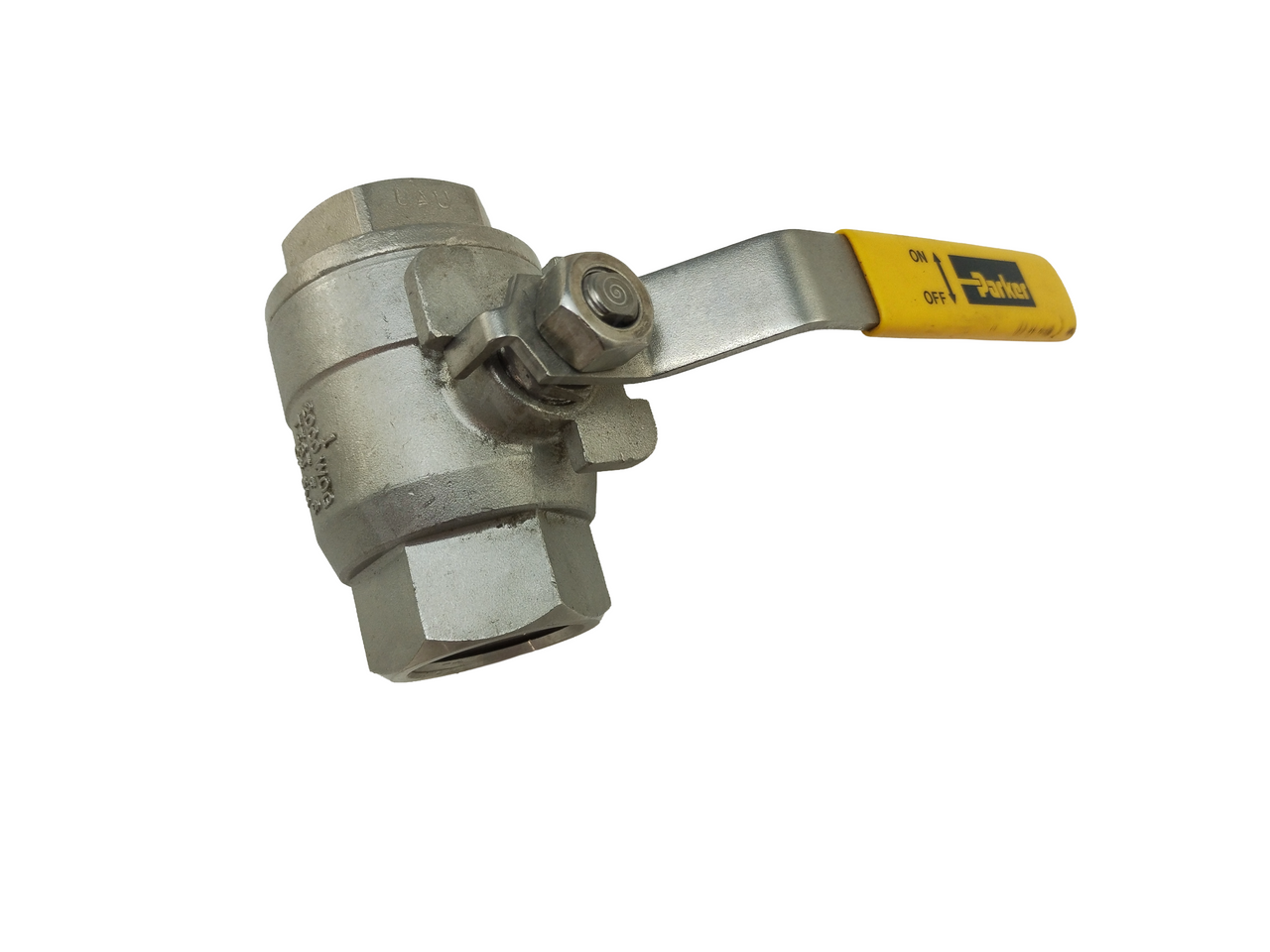

PARKER V502SS-16 BALL VALVE STAINLESS STEEL 1 IN 2000WOG TEST FS CF8M - New no packaging
Minimum Operating Temperature: 0 °F, -17 °C
Connection 1 Thread Size (inch): 1
Maximum Operating Temperature: 400 °F, 204 °C
Maximum Operating Pressure: 2000 psi, 138 bar
Locking Mechanism: Non-Locking
Connection Type: NPT
Body Material: CF-8M Stainless Steel
Ball Material: PTFE
Seat Material: Stainless Steel
Specifications Met: NACE MR-01-75
Connection 2 Thread Style: Female Pipe
Vacuum Pressure Rating: 28 inch-Hg
Actuation Type: Manual
Configuration: Female NPT
Connection Size: 1 inch
Function: 2-way
Orifice Size: 1.0
Maximum Flow Rate: 54 Cv
Product Type: Ball Valve
Shape: Panel Mount
Seal Material: PTFE
Connection 1 Thread Style: Female Pipe
Handle Type: Lever
Mounting Type: Panel
Handle: Stainless Steel Lever
Connection 2 Thread Size (inch): 1
Operation Type: n/a
Style: Female Pipe Ends
Shape: Panel mount
