Product Description

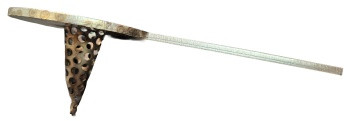

SSI FABRICATED TC1VE1W-A4A CONE STRAINER 1 INCH 304SS - New no packaging
Temporary Strainer, Pipe Size 1 in, Body Material 304 Stainless Steel, Connection Size 1 in, Flange Diameter 2 1/2 in, Length 1 5/8 in, Maximum Temperature 800 Degrees F, Screen Diameter 3/4 in, Screen Material 304 Stainless Steel, Connection Type Wafer Flat Face, For Use With Oil, Water, Includes Screen Screen Included, Material 304 Stainless Steel, Material Grade 304, Maximum Pressure 740 psi, Perforated Screen Size 0.125 in, Series TC, Strainer Type Perforated
Inside Dia. 3/4 in Pipe Size 1 in
Handle Width (In.) 1/8 in Outside Dia. 2 1/2 in
Length 1 5/8 in Connection Size 1 in
Screen Diameter 3/4 in Perforated Screen Size 1/8 in
Flange Diameter 2 1/2 in
Item Temporary Strainer Material of Construction 304 Stainless Steel
Connection Wafer Flat Face For Use With Oil, Water
Type Cone Style Max. Pressure 740 psig
Max. Temp. (F) 800 Degrees F Class 150/300
Body Material Stainless Steel Series TC
Strainer Type Perforated Material Grade 304
Includes Screen Yes Material Stainless Steel
Connection Type Wafer Flat Face Maximum Pressure 740 psi
Maximum Temperature 800 Degrees F Screen Material Stainless Steel
