Product Description

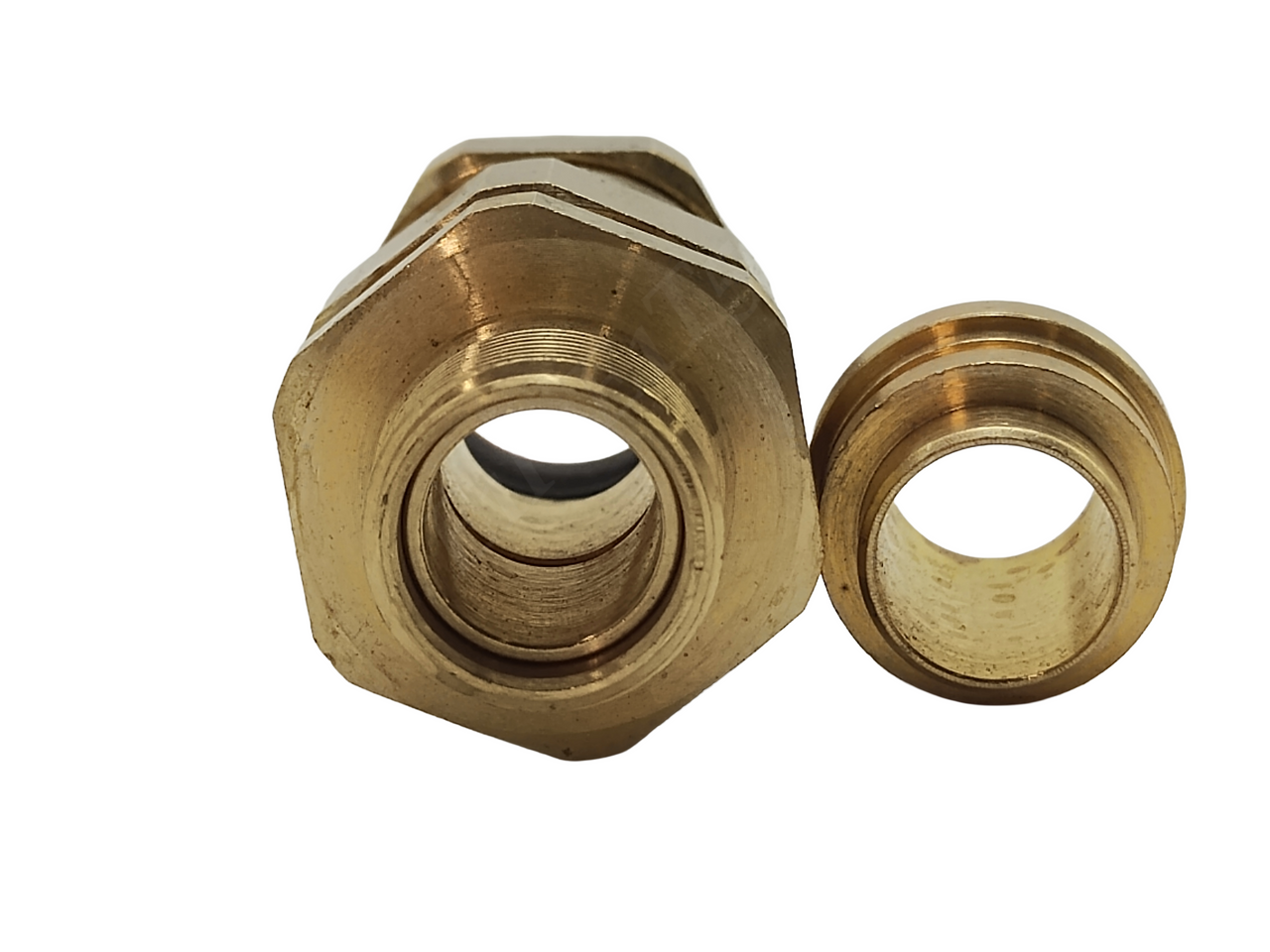

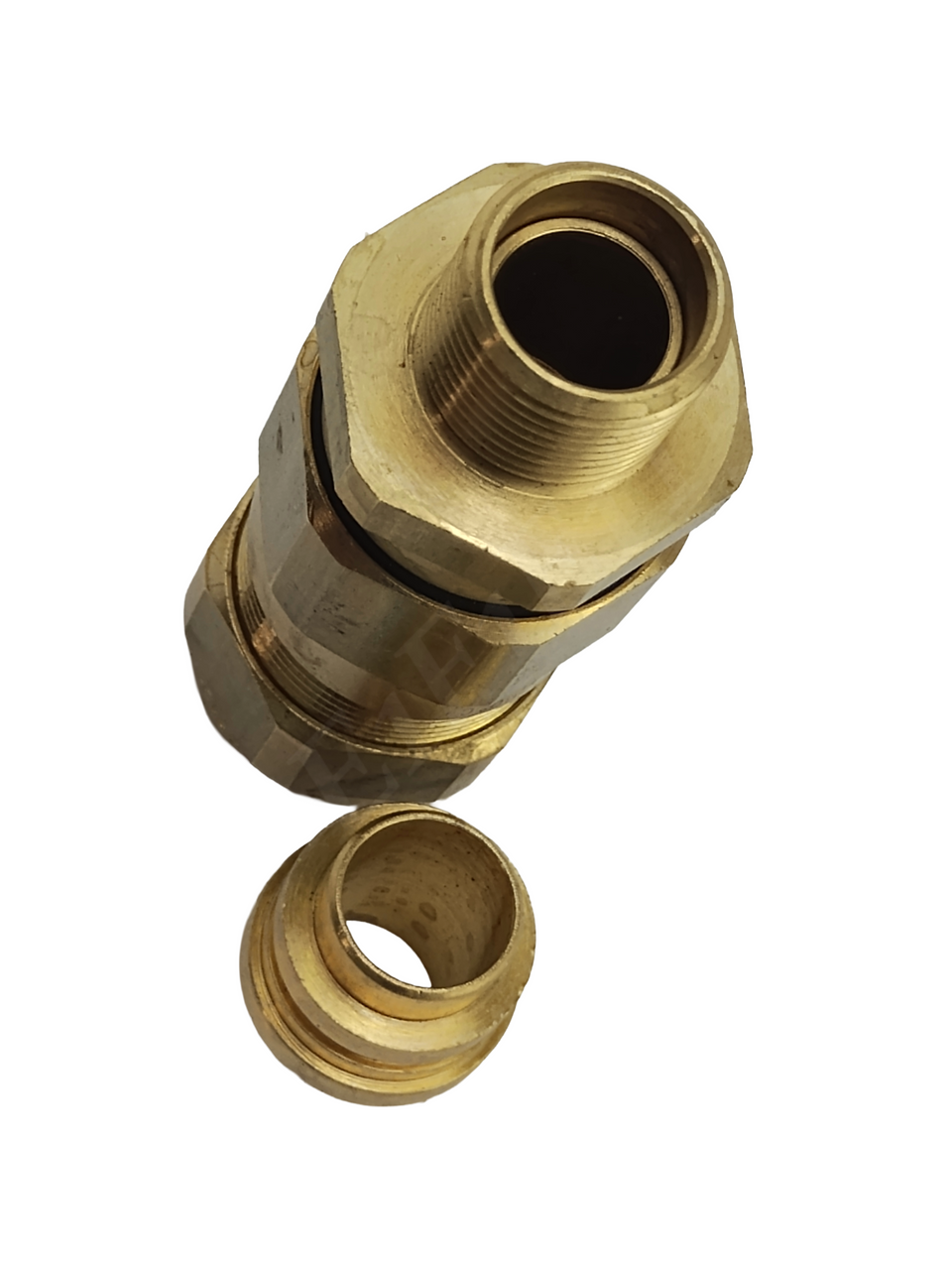

STAHL CMP-20PX2K BRASS NICKEL PLATED GLAND M20 THREAD CABLE - New no packaging
Material Nickel-plated brass
Version 20
Strain relief No
Degree of protection (IP) IP66
Degree of protection note IP67 and IP68 mounting according to the specifications of the manufacturer, CMP. The specified degrees of protection are only fulfilled if CMP installation accessories are used.
Degree of protection (IP) UL IP66
Sealing material SOLO LSF
Sealing ring material Viton
Silicone-free Yes
Number of cables 1
Clamping range 12.50 - 20.90 mm
Armouring type All armouring
Armouring type 2 Without lead sheath
Armouring type 3 With barrier seal
Max. armour wire thickness 999.99 mm
Clamping range 12.50 ... 20.90 mm
Max. number of cores 11
Construction type BS 6121, IEC/EN 62444
Width across corners 33.60 mm
Width across flats 30.50 mm
Thread size NPT1/2
Thread length 19.900 mm
Thread pitch 14 TPI
Thread standard NPT
Gland size 20
Grooved cone 0.40 … 1.00 mm
Stepped cone 0.80 … 1.25 mm
Inner sheath 12.60 mm
Max. internal conduit diameter 12.90 mm
Outer sheath 12.50 … 20.90 mm
Protrusion length 63.00 mm
Impact strength (IEC 60079) 7 J
Impact strength 20 J
PVC boot PVC06
Lot size 1
Weight 240 g
