Product Description

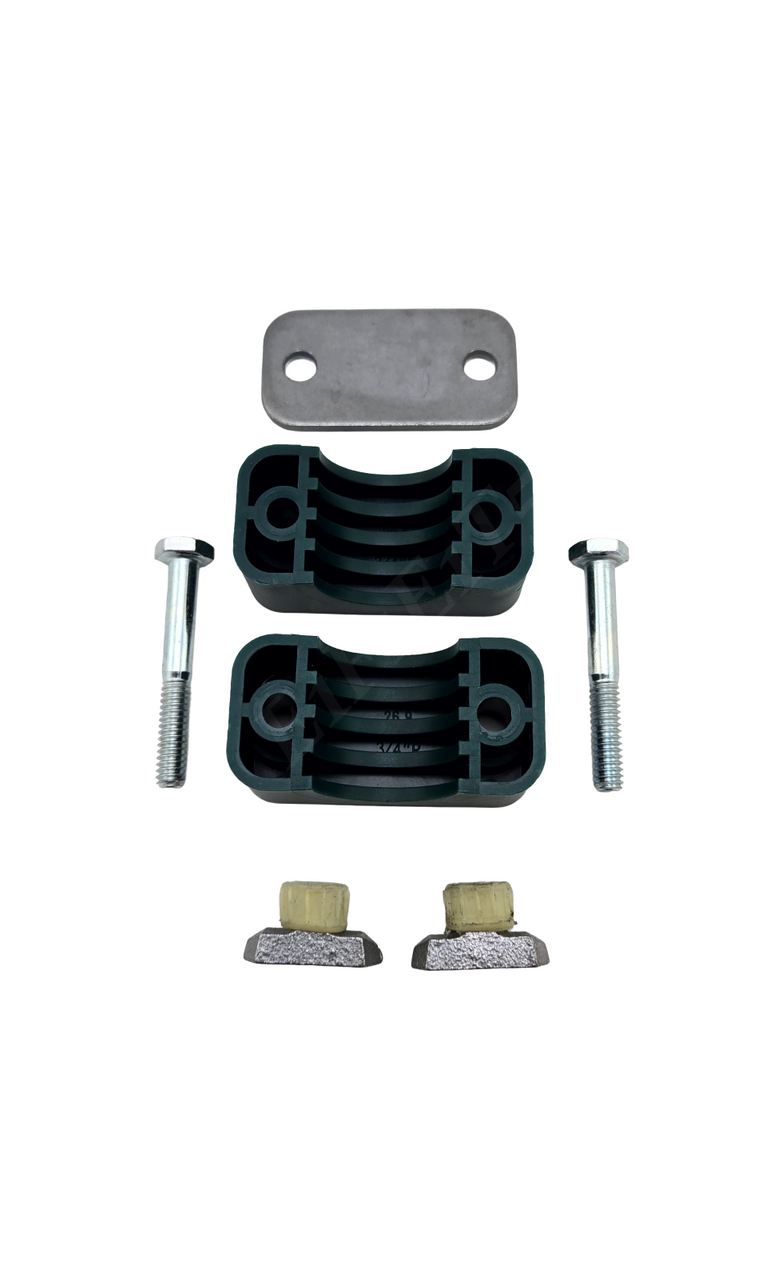

STAUFF SM-426.9-PP-DP-AS-U-W3-K CLAMP 1-1/16 DIA SINGLE VIBRATION DAMPENING RAIL MT SM426, 9PPDPASUW3K - New original packaging
Mounting Location
Rail
Clamp Type
Block
Material
Polypropylene
Top Plate Material
Zinc-Plated Steel
ID
Inch
1 1/16"
Metric
27 mm
For Pipe Size
3/4
Length
2 3/8"
Width
1 3/16"
Height
1 11/16"
Maximum Pressure
2,000 psi
For Rail Opening Wd.
7/16"
Mounting Hardware Included
Yes
Clamping Fastener
Thread Size
1/4"-20
Length
1 7/8"
Color
Green
For IMC Conduit Trade Size
3/4
For Number of Lines
1
For Rigid Conduit Trade Size
3/4
For Use Outdoors
No
Mount Type
Screw On/Slide In
Mounting Hardware Finish
Zinc Plated
Mounting Hardware Material
Steel
Number of Mounting Points
1
Performance
Vibration Damping
Specifications Met
DIN 3015-1
Temperature
-20° F to 190° F
Weight Capacity
Not Rated
Country of Origin
Germany
