Product Description

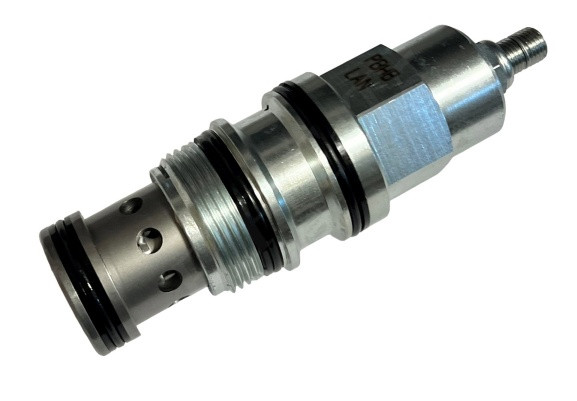

SUN HYDRAULICS PBHBLAN PRESSURE REDUCING CARTRIDGE 40 GPM - New open packaging
Cavity T-17A
Series 3
Capacity 40 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at blocked control port (dead headed)
Control Pilot Flow 15 - 20 in³/min.
Adjustment - No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 1 1/4 in.
Valve Installation Torque 150 - 160 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 1.26 lb.
Seal kit - Cartridge Buna: 990017007
Seal kit - Cartridge EPDM: 990017014
Seal kit - Cartridge Polyurethane: 990017002
Seal kit - Cartridge Viton: 990017006
