Product Description

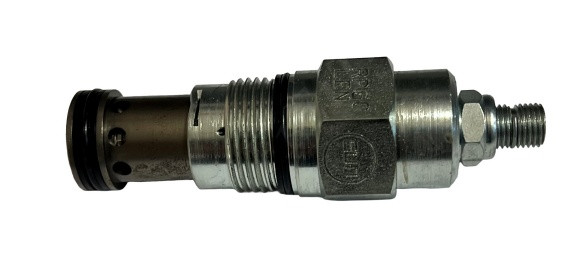

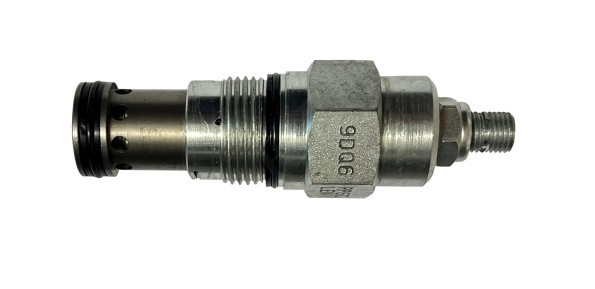

SUN HYDRAULICS RPGC LEN RELIEF VALVE PILOT OPERATED BALANCE - New original packaging
Cavity T-3A
Series 2
Capacity 50 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at 110 SUS (24 cSt) 3 in³/min.@1000 psi
Response Time - Typical 10 ms
Adjustment - No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 1 1/8 in.
Valve Installation Torque 45 - 50 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 0.56 lb.
Seal kit - Cartridge Buna: 990203007
Seal kit - Cartridge EPDM: 990203014
Seal kit - Cartridge Polyurethane: 990003002
Seal kit - Cartridge Viton: 990203006
