Product Description

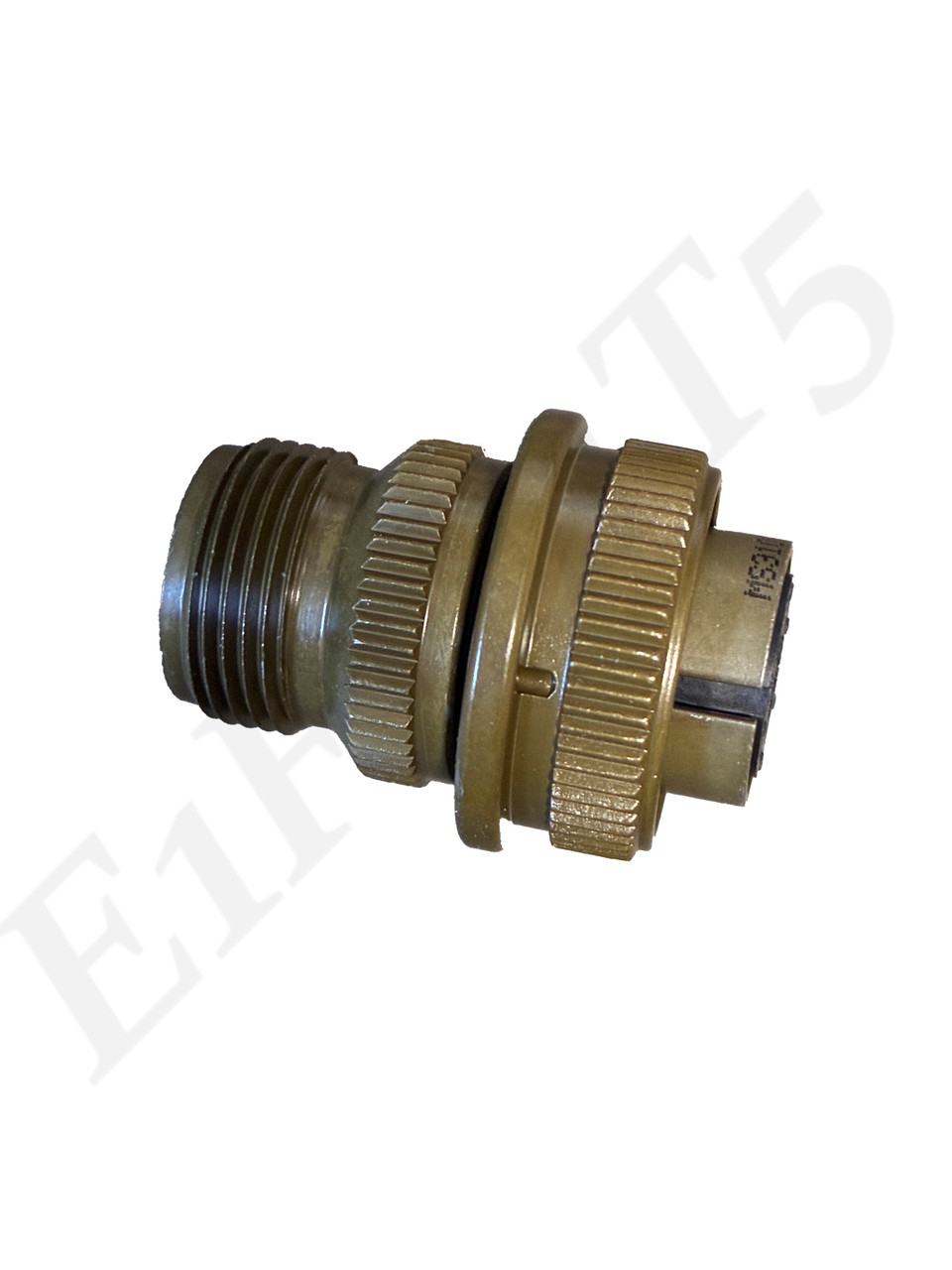

AMPHENOL MS3106A14S-6S 6-POSITION CIRCULAR CONNECTOR SOCKETS STR PLUG SIZE 14S,6 #16 SOCKET - New no packaging
Primary Material Metal
Mfr Amphenol Industrial Operations Shell Material Aluminum Alloy
Series MS Shell Finish Olive Drab Chromate over Cadmium
Packaging Bulk Contact Finish - Mating Silver
Part Status Active Color Olive Drab
Connector Type Plug, Female Sockets Features Backshell, Coupling Nut
Number of Positions 6 Shielding Unshielded
Qualification MIL-DTL-5015 Operating Temperature -55°C ~ 125°C
Shell Size - Insert 14S-6 Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Mounting Type Free Hanging (In-Line) Contact Material Copper Alloy
Termination Solder Cup Insert Material Neoprene
Fastening Type Threaded Applications Marine, Military
Orientation N (Normal) Base Product Number MS3106A14
Part Number Alias
MS3106A-14S-6S
MS3106A-14S-6S-ND
339-MS3106A-14S-6S
61-168614-06S
AMS3106A-14S-6S-ND
MS3106A14S-6S
U61-168614-06S
MS3106A14S6S
S61-168614-06S
339-MS3106A14S-6S
AMS3106A-14S-6S
339-MS3106A-14S-6S-ND
6116861406S
