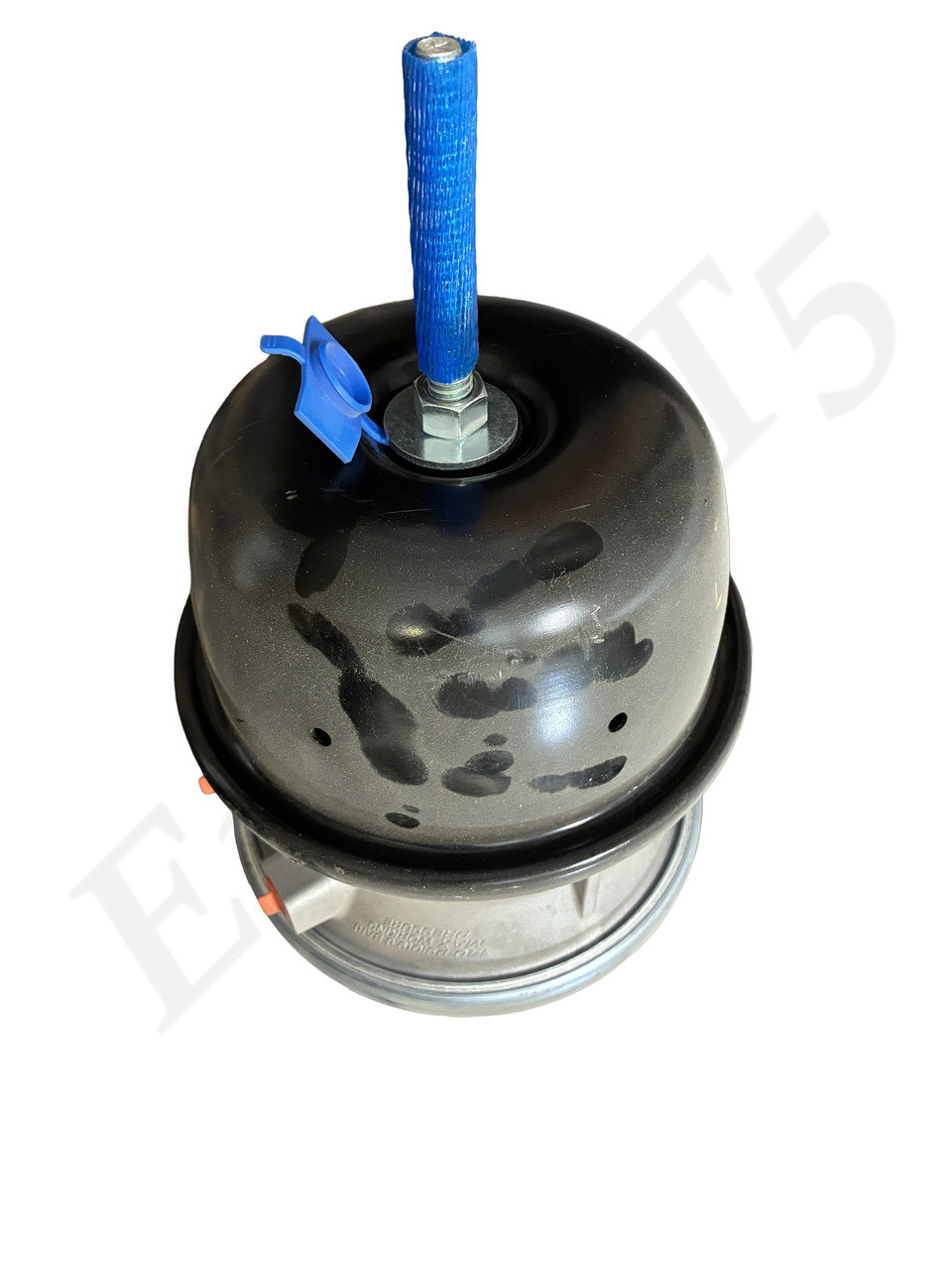

HALDEX GC3030L AIR BRAKE CHAMBER 3030GS LONG STROKE AVAIL 3 IN/76 MM - New no packaging
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
Rugged Service Housing; 9 gauge steel, powder coated
Orange Alert® Stroke Indicator
Self-piloting Dust Shield
Sizes to fit all drum brake applications
Notes
A = Length from mounting bracket to end of Spring Housing
B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clamp band
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clamp band position (0°)
T = Air Port position (90°)
Replaces 3030054 and MA15473
Stroke Type
Long
Available Stroke
3.00", 76mm
A
9.9", 251mm
B
7.4", 187mm
C
8.3", 211mm
D
10.2", 259mm
J
10.00"
Weight
21.5 lbs. , 9.7 kg.
