Product Description

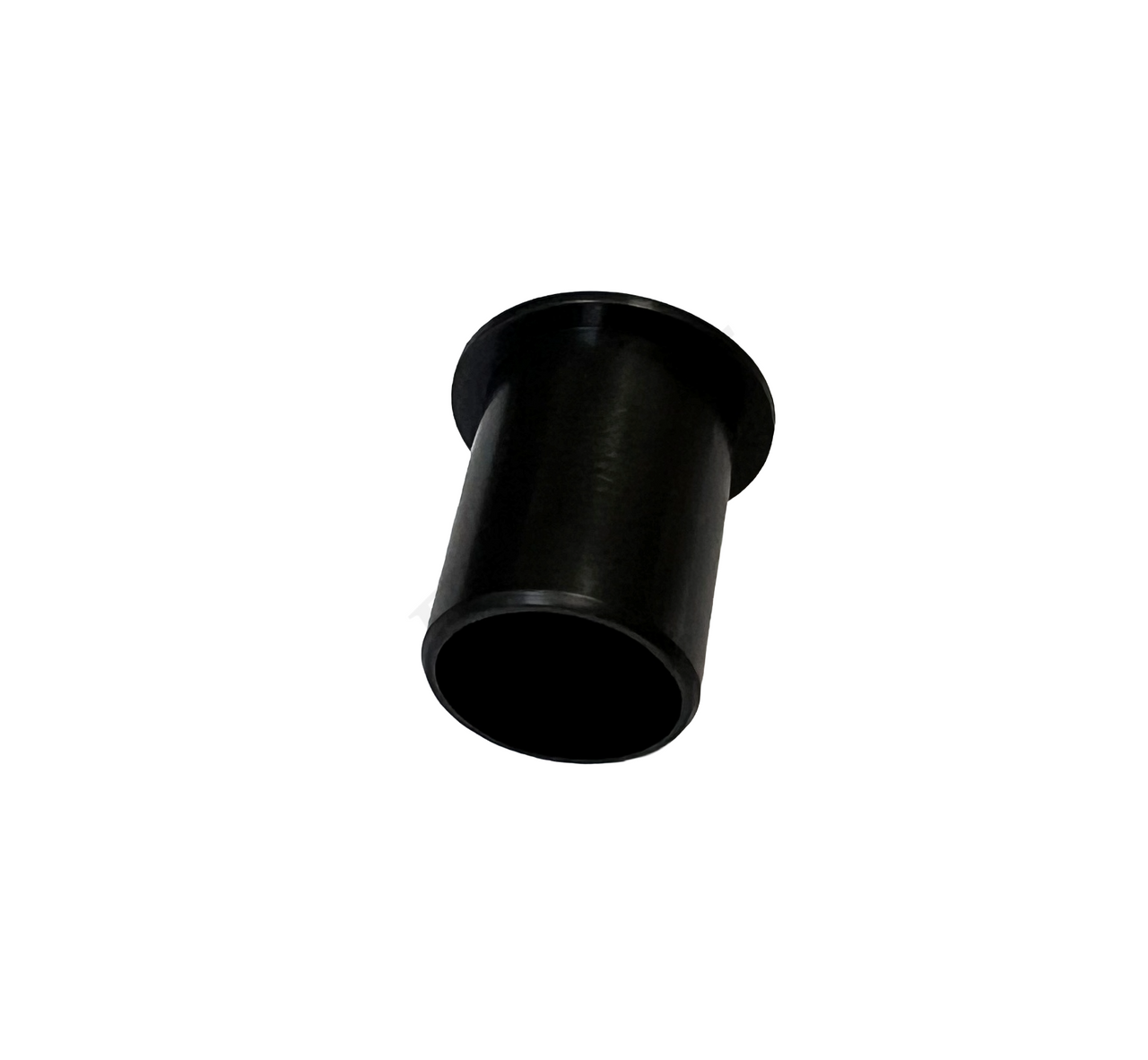

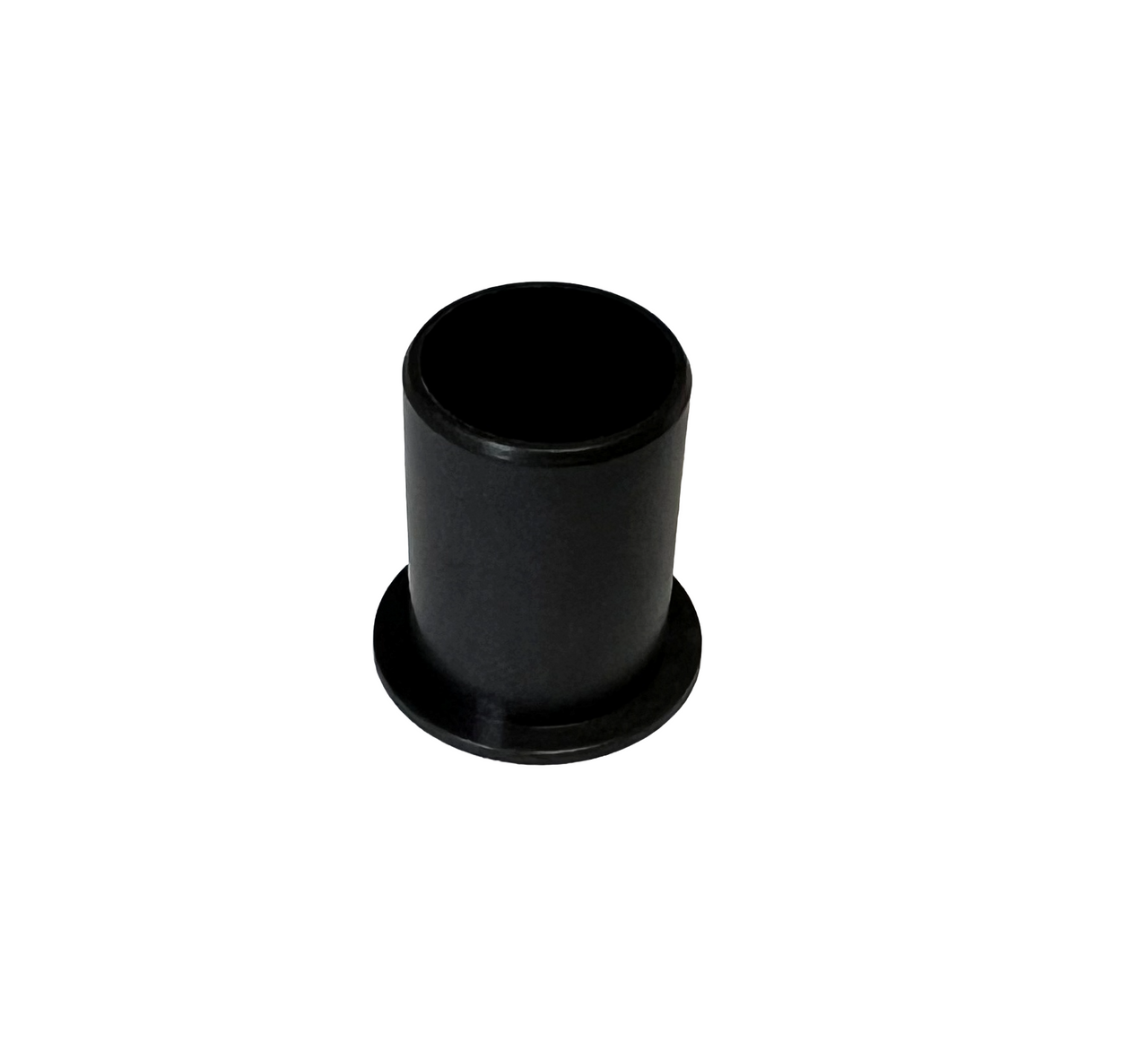

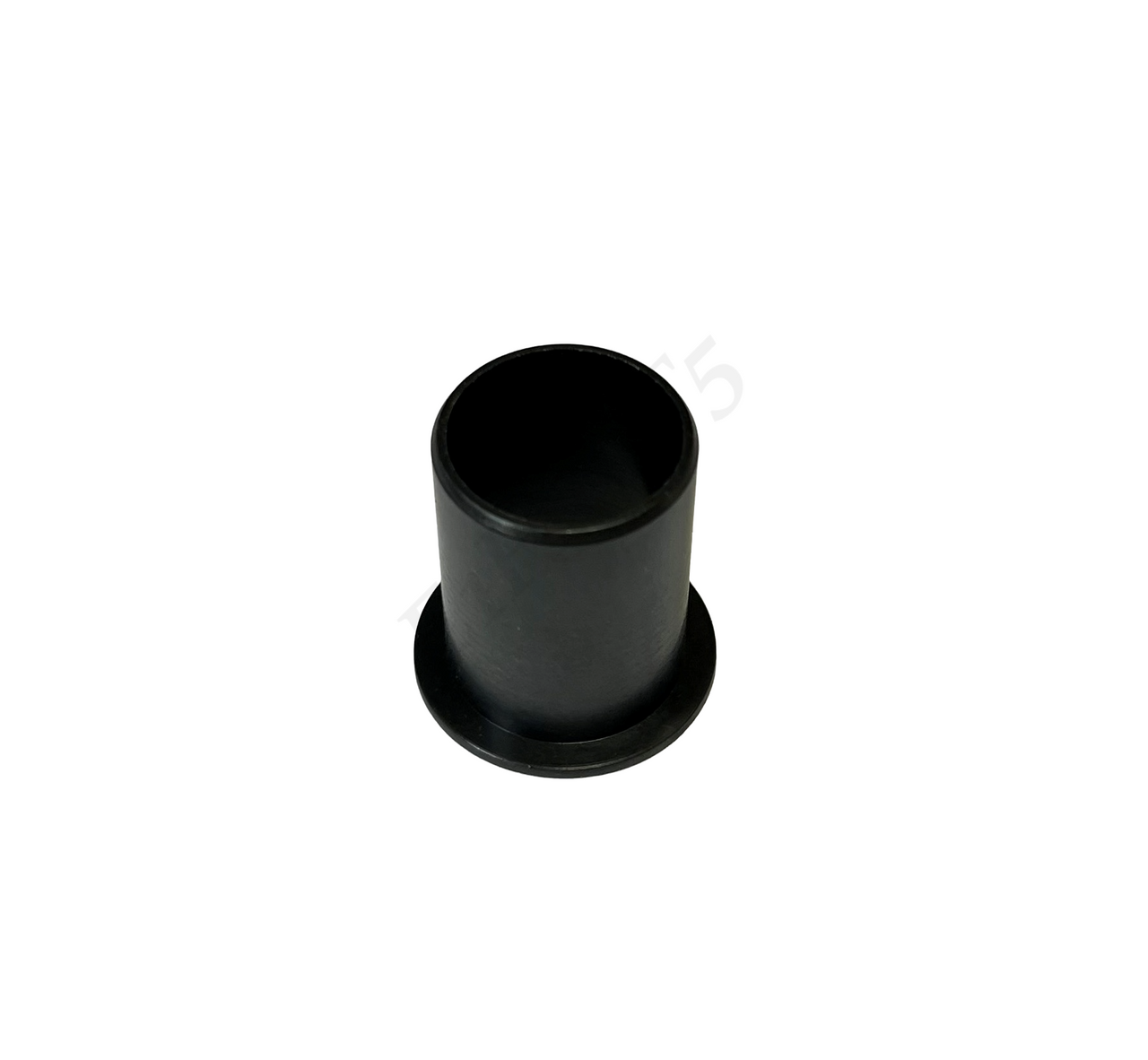

IGUS TFI-1011-16 FLANGE BEARING 0.625ID 0.719OD 1.00 XFI-1011-16 - New no packaging
General properties
Coefficient of sliding friction, dynamic, against steel
0,09 - 0,27 μ
pv value, max. (dry)
37,700 PSI ⋅ f/m (1.32 MPa ⋅ m/s)
Radioactive radiation max.
1 ⋅ 105 Gy
Mechanical properties
Max. recommended surface pressure
21756 PSI (150 MPa)
Flexural strength (at 20 °C/68 °F)
24656 PSI (170 MPa)
Modulus of elasticity
1174806 PSI (8100 MPa)
Maximum running speed, rotating, short-term
689 fpm
Pressure load
14504 PSI (100 MPa)
Maximum running speed, linear, continous
984 fpm
Maximum running speed, oscillating, continous
217 fpm
Maximum running speed, oscillating, short-term
492 fpm
Maximum running speed, rotating, continous
295 fpm
Maximum running speed, linear, short-term
1969 fpm
Requirements
RoHS 2 compliant according to EU-Guideline 2011/65/EU
RoHS 2 compliant according to EU-Guideline 2011/65/EU
yes
Electricity attributes
Surface resistance
< 103 Ω, test method DIN 53482
Specific volume resistance
< 105 Ωcm, test method DIN IEC 93
Thermal properties
Max. temperature short
599 °F (315 °C)
Heat conductivity
0.60 W/m · K, Prüfmethode ASTM C 177
Thermal expansion coefficient (at 23°C/73°F)
5 K–1 · 10–5 DIN53752
Max. temperature long
482 °F (250 °C)
Lower application temperature
-148 °F (-100 °C)
