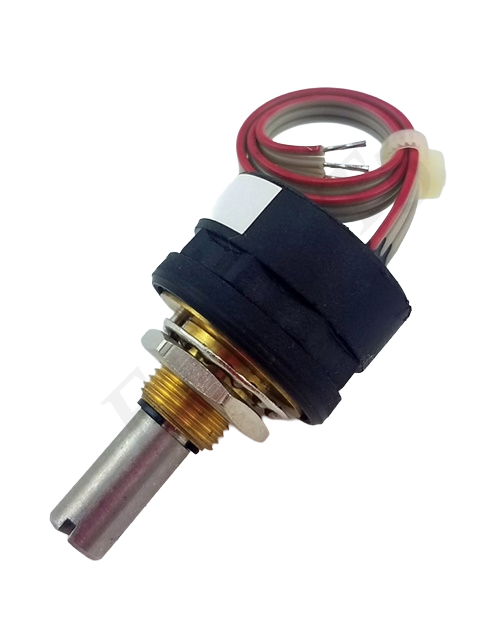

P3 AMERICA ERC 3 2442 360 ENCODER 4-20MA HALL EFFECT SINGLE TURN ROTARY - New no packaging
Effective electrical angle of rotation 360° (std) or any fraction. Minimum angle 20°
Independent linearity ±0.5%
Supply voltage 5V ±10% 9..30V 15..30V
Output signal 0..5V (ratiometric) or PWM 0..5V, 0..20mA, 4..20mA 0..5V, 0..10V
Output load Voltage output: ≥ 5k Ohm Current output: ≤ 500 Ohm
Electrical Speed (Max) 1600 RPM
Resolution 12 bit (4096 steps)
Current consumption (no load) < 16 mA
Update rate 1 ms
Insulation voltage 1000 VAC @ 50 Hz, 1 min.
Insulation resistance 2 MOhm @ 500 VDC, 1 min.
Mechanical angle of rotation 360º (continuous)
Maximum rotational speed 800 RPM (brass bearing) 3000 RPM (optional polymer bearing)
Life expectancy > 25,000,000 turns
Starting torque 0.5 ~ 1Ncm
Maximum radial load 1 N
Sleeve Bearing Sintered bronze bearing (std.) or optional polymer bearing
Protection class IP65 (electronics and cable)
Operating temperature -40ºC...+85ºC
Storage temperature -40ºC...+90ºC
Vibration (IEC 68-2-6, Test Fc) 20 g (±1.5mm, 10 to 2000 Hz, 16 ycles , 3 axis, (3x4 h)
Shock (IEC 68-2-7, Test Ea) 50 g (11ms, 18x)
Housing material Nylon 66 Glass Fiber Reinforced
Shaft material Stainless steel
Cable 3 core flat cable. 0.15 m (AWG28)
Weight approx. 25 g
