Product Description

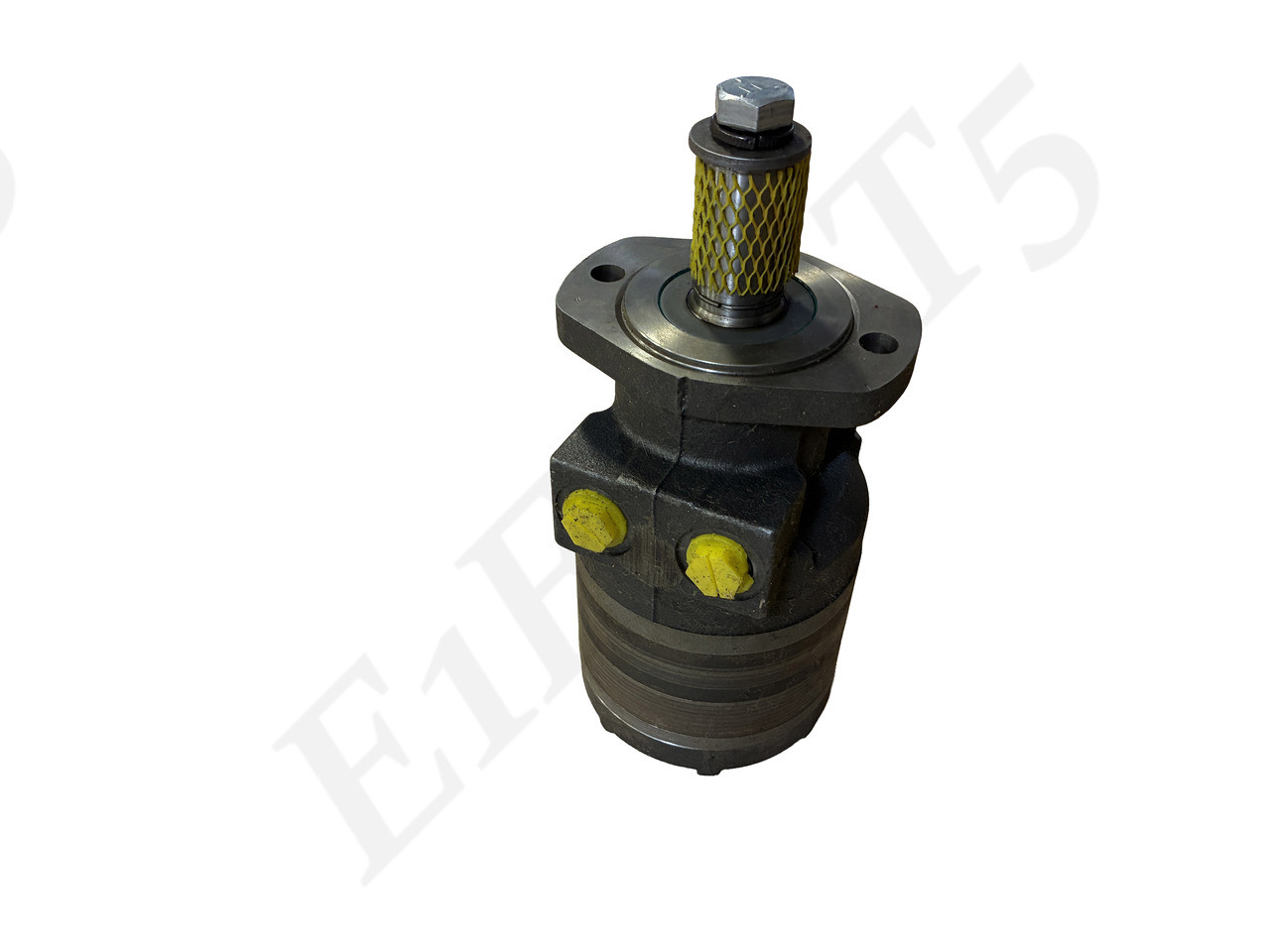

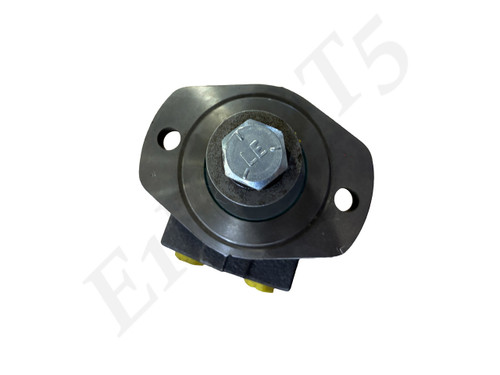

PARKER MB180603 HYDRAULIC MOTOR VANE ROLLER 17 CID 1-1/4 SHAFT - New no packaging
17.1 cu. in. Motor
PARKER/ROSS MB180603. Zero
leak commutation valve provides high volumetric efficiency. High pressure shaft
seal, heavy duty thrust and roller bearings.
SPECIFICATIONS
• Displ. 17.1 cu. in.
• Torque 4052 in lbs. cont.
• PSI 2000 cont., 3000 int. 7029 in. lbs. int.
• GPM 20 cont., 25 int.
• Ports SAE 10
• RPM 252 at 20 GPM
• Shaft 1¼˝ x 2˝
334 at 25 GPM w/drilled/tapped end
• Mount 2 bolt SAE A
• Shpg. 36 lbs.
