Product Description

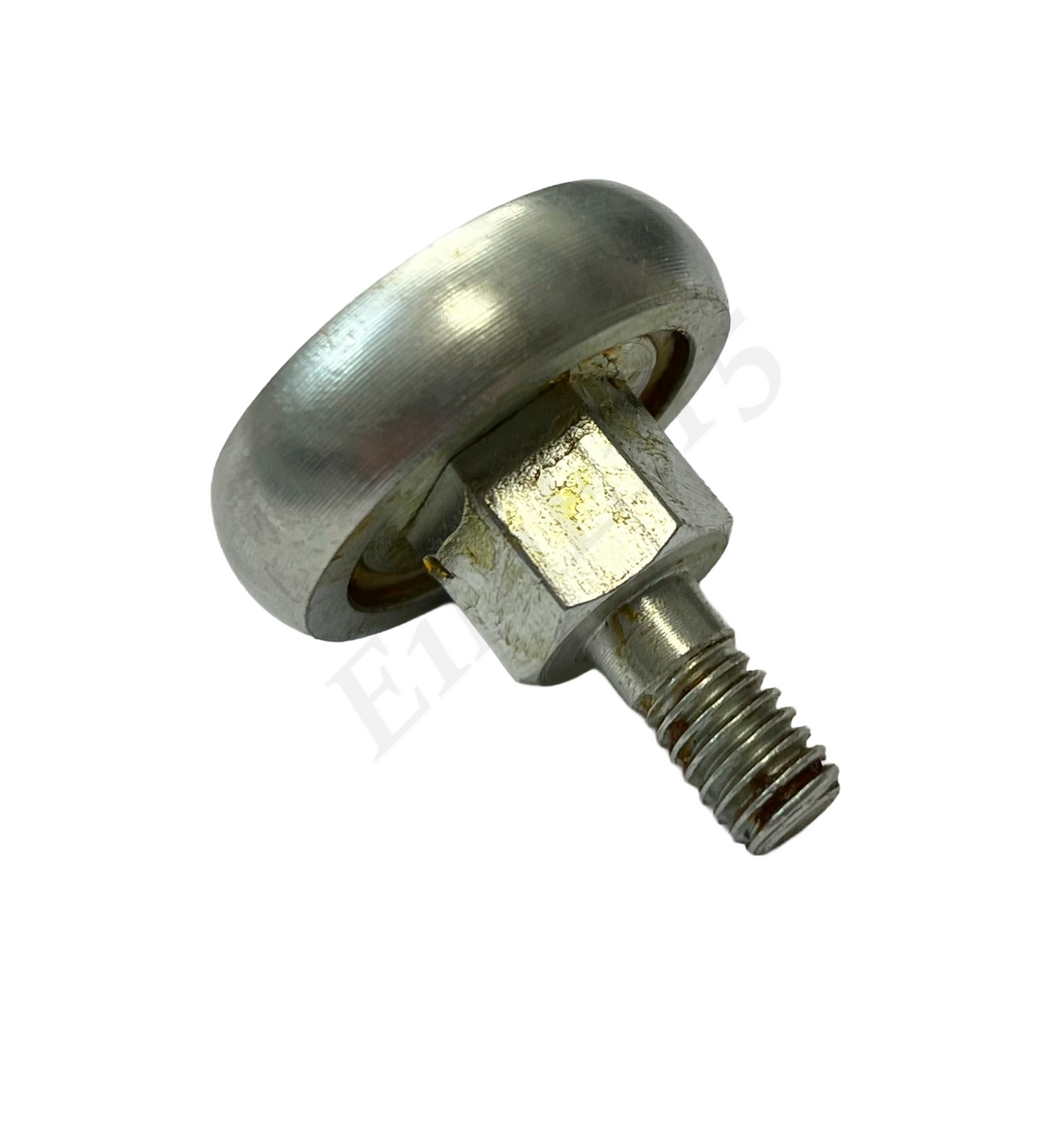

PBC LINEAR PAC3016 HARDENED CAM-FOLLOWER BEARING CROWN ROLLER 1.38 DIA - New original packaging
Roller Width (In.)
0.3800
Stud Dia. (In.)
0.3130
Stud Length (In.)
0.625
Roller Width
3/8 in
Thread Length (In.)
0.45 in
Roller Dia. (In.)
1.3800
Stud Dia.
0.313 in
Stud Length
5/8 in
Roller Dia.
1.38 in
Roller Width (mm)
30.2
Stud Dia. (mm)
10.72
Thread Size
5/16-18
Hex Drive Size
9/16 in
Stud Diameter
5/16 in
Stud Thread Size
5/16"-18
Overall Length
1 27/64 in
Stud Thread Length
7/16 in
Roller Diameter
1 3/8 in
Item
Cam Follower
Number of Bearings
1
Max. Load Axial (Lb.)
250 lb
Stud Material
Zinc Plated Steel
Bearing Material
Zinc Plated Steel
Bearing Type
Ball
Roller Type
Crown
Roller Material
Carbon Steel
Stud Type
Concentric
Dynamic Load Capacity (Lb.)
300 lb
Face Design
Plain
Roller Style
Stud
Roller Shape
Crowned
Static Load Capacity (Lb.)
399 lb
For Use With
Hardened Crown Roller Rail
Rolling Element Rows
1
Closure
Double Sealed
Features
Hardened Crown Rollers
Seal Material
Nylon 6/6
Seal Type
Contact
Dynamic Radial Load Capacity
300 lbf
Duty Type
Standard
Drive Type
External Hex
Static Radial Load Capacity
399 lbf
Drive Location
Stud
System of Measurement
Inch
