Product Description

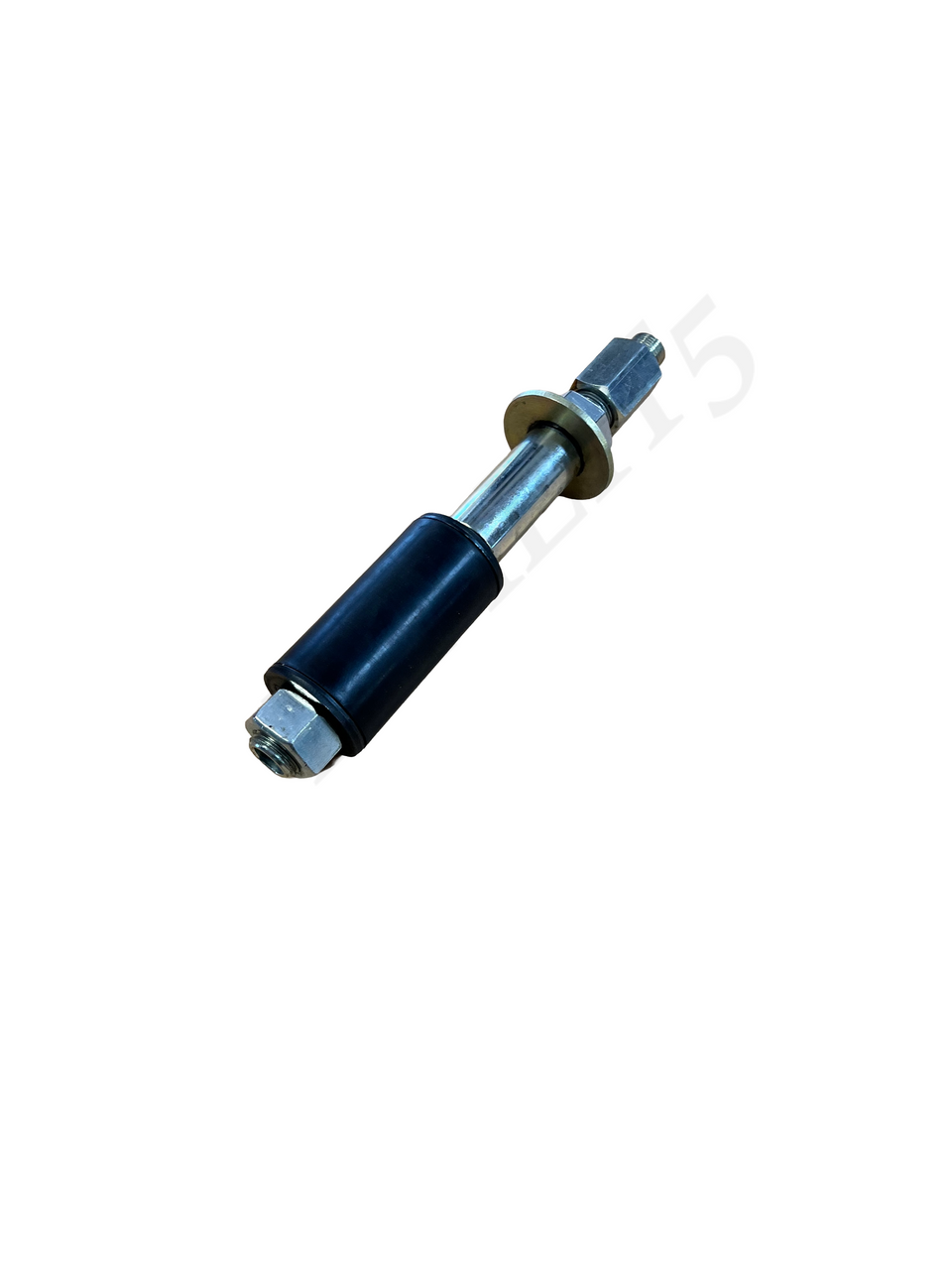

PETERSEN PRODUCTS 146-90175 EXPANSION PLUG 1.63-1.76 RANGE 150 PSI W/O CAP - New original packaging
By-Pass 3/8" MNPT
By-Pass Flow Through Cap Type Not Included
Country of Origin USA
Dia. Max 1.76" (45mm)
Dia. Min 1.63" (41mm)
Lngth, Overall 9.5" (241mm)
Lngth, Seal 3" (76mm)
Material, Body Carbon Steel, Plated
Material, Hardware Steel, Plated
Material, Seal Nitrile
Nominal Pipe 2" Sch 160
Pipeline Max PSI 150 psi (10.34 bar)
Pressure Pipeline Max Head 347 ft (105.76 m)
Sage Subcategory Number W1469
Seal Expansion System Hex Nut, 3/4"
Seal Expansion Torque Ft/Lb 60 FT-LB
Seal Part Number 931-4130-01601
Shipping Wt. 1 Lb (0.45 Kg)
Style Internal to Pipe Plug
Temperature Max. Service F 200 F (93.33 C)
