Product Description

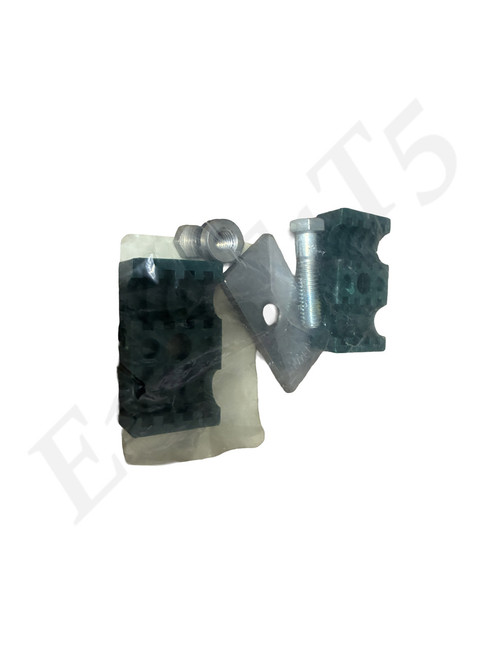

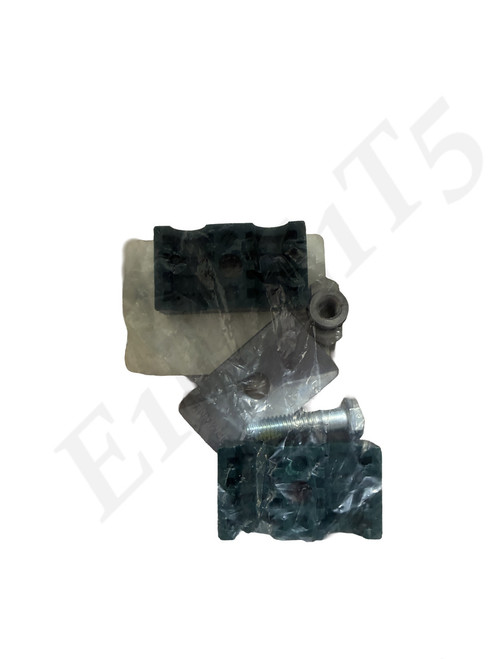

STAUFF SM760,3PPDP-ASUW3#K CLAMP,2-3/8 DIA SINGLE VIBRATION DAMPENING RAIL MT - New original packaging
Mounting Location
Rail
Clamp Type
Block
Material
Polypropylene
Top Plate Material
Zinc-Plated Steel
ID
Inch
2 3/8"
Metric
60 mm
For Pipe Size
2
Length
4 13/16"
Width
1 3/16"
Height
3 11/16"
Maximum Pressure
2,000 psi
For Rail Opening Wd.
7/16"
Mounting Hardware Included
Yes
Clamping Fastener
Thread Size
1/4"-20
Length
4"
Color
Green
For IMC Conduit Trade Size
2
For Number of Lines
1
For Rigid Conduit Trade Size
2
For Use Outdoors
No
Mount Type
Screw On/Slide In
Mounting Hardware Finish
Zinc Plated
Mounting Hardware Material
Steel
Number of Mounting Points
1
Performance
Vibration Damping
Specifications Met
DIN 3015-1
Temperature
-20° F to 190° F
Weight Capacity
Not Rated
Country of Origin
Germany
